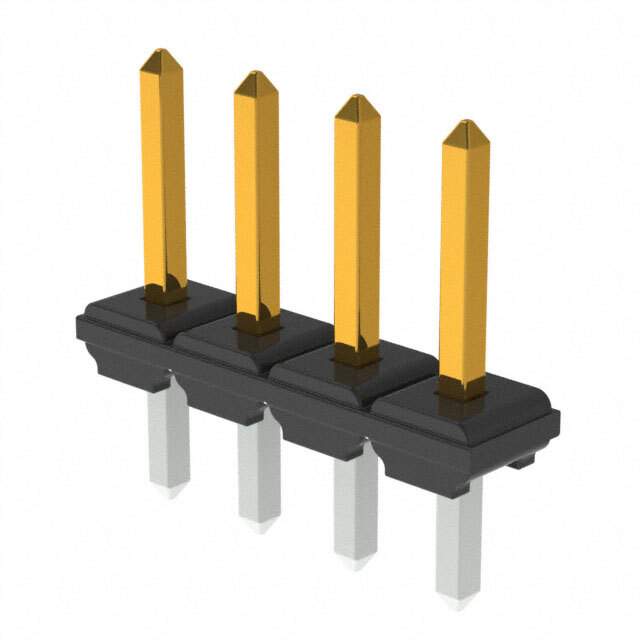

XJ8B-0411 Real Image
Same model may have multiple batches, images only for reference.

XJ8B-0411

Part No XJ8B-0411
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2.54MM  /  Connector Header Through Hole 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Omron Electronics Inc-EMC Div
Series XJ8
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.169" (4.30mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.339" (8.60mm)
Insulation Height 0.059" (1.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.90µin (0.150µm)
Contact Material Brass, Nickel
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2A
Voltage Rating 300V
Base Product Number XJ8B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names XJ8B-0411-ND,Z8751,XJ8B0411,XJ8B0411-ND
Standard Package 800
Win Source Part Number 1000824-XJ8B-0411
Ultra Librarian 3D Model Ultra Librarian XJ8B-0411 CAD Model

Description

The Omron Electronics Inc-EMC Div XJ8B is a rectangular connector header that is designed for use in various electronic applications.

  • Win Source Part Number: 1000824-XJ8B-0411
  • Category: Connectors, interconnects
  • Series: XJ8
  • Number of Positions: 4
  • Contact Type: Male pin
  • Termination Type: Solder
  • Fastening Type: Push-pull
  • Voltage Rating: 300V
  • Current Rating: 2A
  • Mounting Type: Through-hole
  • Shrouding: Unshrouded
