Product Overview: 1N5396 General Purpose Rectifier

The 1N5396 is a robust general-purpose rectifier designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This rectifier is widely used in various electronic applications due to its reliability and efficiency. It is suitable for use in power supplies, converters, and as freewheeling diodes in a variety of consumer, industrial, and automotive applications.

Key Features

• High Current Capability: The 1N5396 is capable of handling a high forward current of up to 1.5 amperes, making it suitable for high-current applications.
• High Surge Current Capability: With its ability to handle a surge current, this rectifier can withstand temporary over-current conditions, enhancing its durability.
• Low Forward Voltage Drop: The device's low forward voltage drop ensures minimal power loss, contributing to the overall efficiency of the system it is used in.
• High Reliability: ON Semiconductor's commitment to quality ensures that the 1N5396 rectifier offers excellent reliability for a stable and long-lasting performance.
• Versatility: This component is versatile in its use, suitable for a wide range of applications, including commercial and automotive environments.

Electrical Specifications

• Maximum Repetitive Reverse Voltage (Vrrm): 400V
• Maximum RMS Voltage (Vrms): 280V
• Maximum DC Blocking Voltage (Vdc): 400V
• Operating Junction Temperature Range: -55°C to +150°C

Package and Compliance

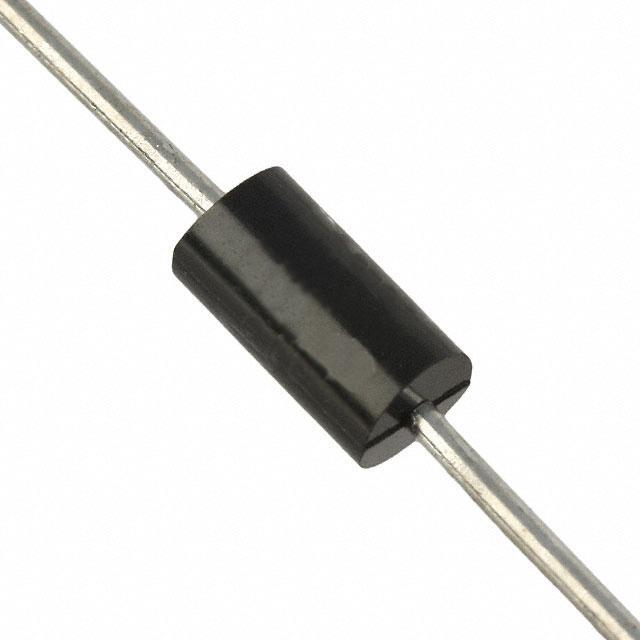

The 1N5396 is provided in an axial-lead package, designed for easy installation in a wide variety of through-hole PCB applications. It is also compliant with the RoHS Directive, making it an environmentally friendly choice for manufacturers concerned with reducing hazardous substances in electronic components.

Conclusion

ON Semiconductor's 1N5396 general-purpose rectifier is an excellent choice for designers and engineers looking for a reliable and efficient solution for their rectification needs. Its high current and surge capabilities, combined with a low forward voltage drop and high reliability, make it a versatile component suitable for a multitude of electronic circuits and products.
