Product Overview: 1N6373 from ON Semiconductor

The 1N6373 is a robust, high-performance transient voltage suppressor (TVS) diode designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This TVS diode is engineered to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other sudden voltage events. With its quick response time and high surge capability, the 1N6373 is an ideal solution for safeguarding voltage-sensitive components in a variety of applications.

Key Features

• Peak Pulse Power: The 1N6373 can handle an impressive 1500 watts of peak pulse power dissipation for a 10/1000μs waveform. This feature ensures reliable protection against high energy transients.
• Standoff Voltage: It offers a standoff voltage of 5.0V, making it suitable for a range of electronic circuits that require a specific operating voltage level.
• Breakdown Voltage: The breakdown voltage range is from 6.40V to 7.07V, providing a margin of safety above the working peak reverse voltage.
• Clamping Voltage: At a peak pulse current of 50A (tp=10/1000μs), the maximum clamping voltage is 9.6V, ensuring that the voltage spike is capped at a safe level for the circuit components.
• Low Leakage Current: The 1N6373 exhibits low leakage current, minimizing power loss when the device is in standby mode and enhancing overall energy efficiency.
• Reverse Surge Capability: It can withstand reverse surges without performance degradation, which is critical for maintaining long-term reliability.

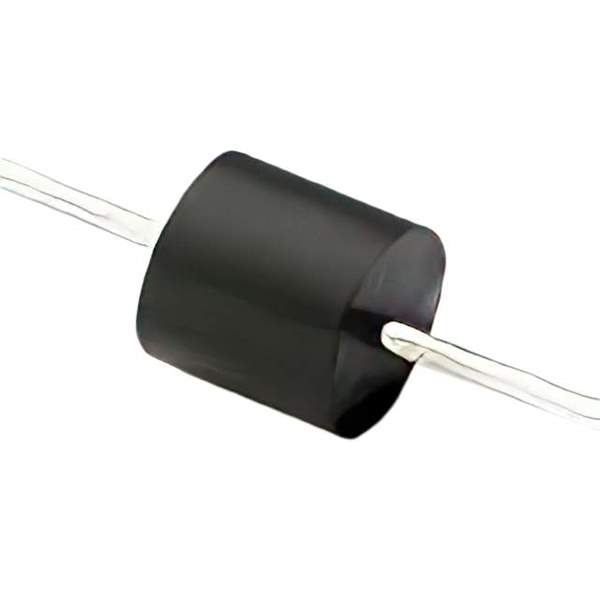

• Package: The device is offered in an axial-lead package, which is designed for easy installation and is compatible with various PCB layouts.
• RoHS Compliant: ON Semiconductor ensures that the 1N6373 meets RoHS directives, making it environmentally friendly and suitable for use in green applications.

Applications

The 1N6373 is versatile and can be used in a wide array of applications, including:

• Power supply protection
• Industrial systems
• Telecommunication devices
• Consumer electronics
• Automotive electronics
• Aerospace and avionics

With its combination of high surge protection, reliability, and environmental compliance, the 1N6373 from ON Semiconductor is an excellent choice for designers looking to enhance the durability and longevity of their electronic products.
