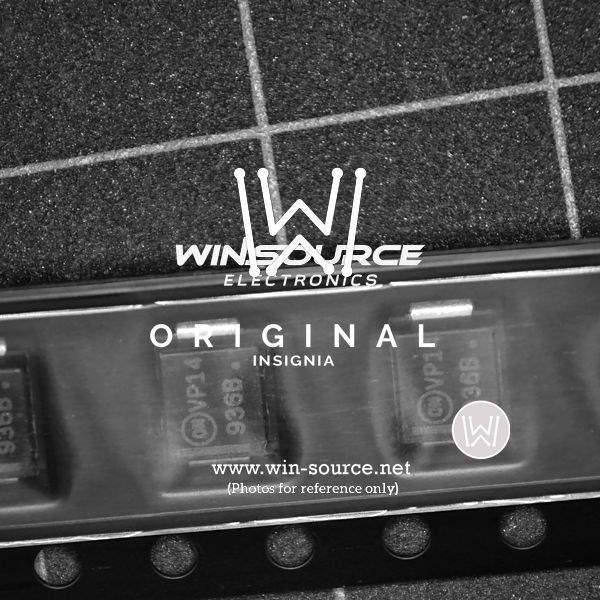

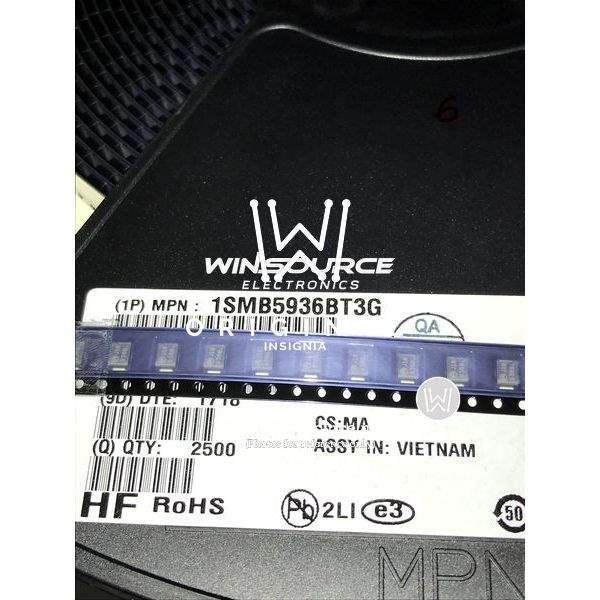

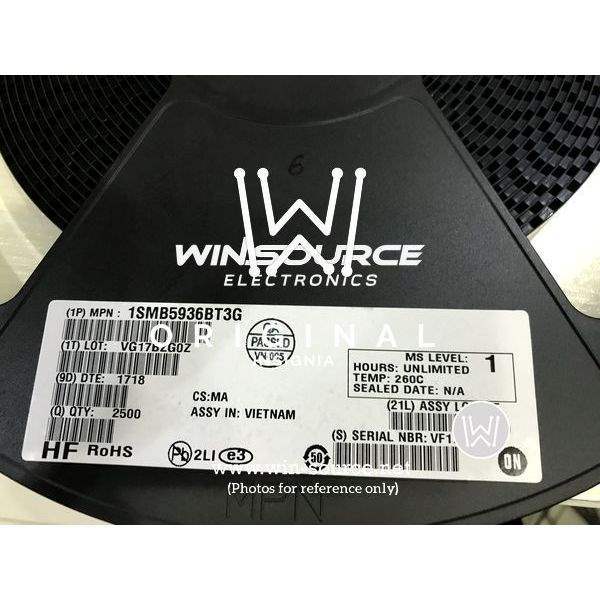

Product Overview: 1SMB5936BT3G by ON Semiconductor

The 1SMB5936BT3G is a high-quality Zener voltage regulator diode designed and manufactured by ON Semiconductor, a leading provider in the semiconductor industry. This product is part of the 1SMB59xxBT3G series, which is known for its reliability and performance in a wide range of applications. It is engineered to provide a precise voltage regulation solution with a nominal Zener voltage of 36 volts, making it suitable for various electronic circuits requiring voltage stabilization.

Key Features

• Voltage Regulation: The 1SMB5936BT3G offers a Zener voltage of 36V with a tolerance of ±5%, ensuring accurate voltage regulation for sensitive electronic components.
• Power Dissipation: With a power rating of 3 watts, this Zener diode can handle significant power levels, making it ideal for higher power applications.
• Surface Mount Package: The device comes in a surface-mount SMB package, which is compact and suitable for automated assembly processes, saving space on printed circuit boards (PCBs).
• Thermal Stability: It features a low dynamic impedance and excellent clamping capabilities, providing stable performance over a wide temperature range.
• ESD Rating: The product has an electrostatic discharge (ESD) immunity, which is crucial for protecting the diode from sudden electrical discharges.

Applications

The 1SMB5936BT3G is versatile and can be used in a variety of applications, including:

• Power supply circuits
• Consumer electronics
• Telecommunication systems
• Industrial equipment
• Automotive systems
• Overvoltage protection circuits

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the 1SMB5936BT3G is no exception. It is manufactured to meet stringent standards, ensuring high reliability and performance in even the most demanding conditions. Additionally, it is RoHS compliant, which means it adheres to the restrictions on the use of certain hazardous substances in electrical and electronic equipment.

In summary, the 1SMB5936BT3G Zener diode from ON Semiconductor is an excellent choice for designers looking for a robust, reliable voltage regulation solution in a compact surface-mount package.
