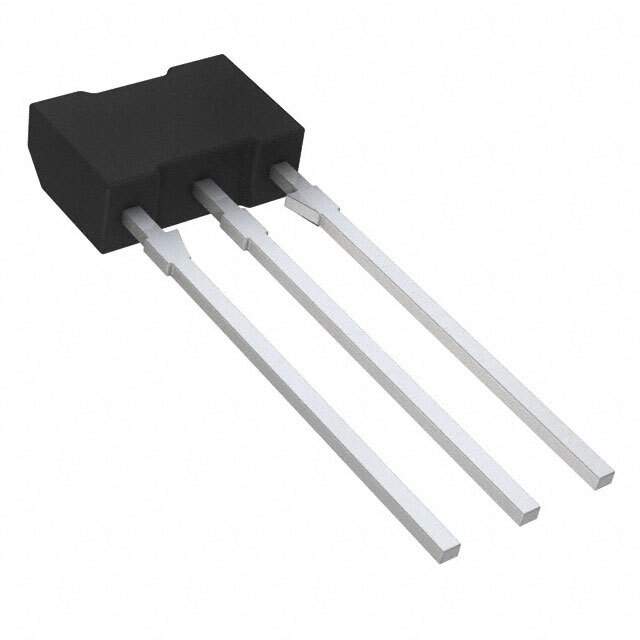

2SC4482T-AN - ON Semiconductor

The 2SC4482T-AN is a state-of-the-art bipolar junction transistor (BJT) developed by ON Semiconductor, a leading provider of semiconductor solutions. This product is designed for high-efficiency audio amplification and switching applications, offering superior performance in a compact and reliable package.

Key Features:

• High Current Capacity: The 2SC4482T-AN is capable of handling significant current levels, making it suitable for high-power applications.
• Low Saturation Voltage: It exhibits low V<sub>CE(sat) characteristics, which translates to reduced power loss and improved efficiency in operation.
• Excellent Gain Linearity: This transistor maintains exceptional gain linearity throughout its operating range, ensuring consistent performance and audio fidelity.
• Robust Thermal Performance: The 2SC4482T-AN is designed to operate reliably over a wide temperature range with an excellent thermal response, minimizing the risk of thermal runaway.
• Complementary PNP Type: ON Semiconductor offers a complementary PNP type transistor, which can be used in push-pull configurations for balanced operation in amplifiers.

Applications:

• Audio Power Amplifiers
• Power Switching Circuits
• Driver Stages in Hi-Fi Amplifiers
• DC-DC Converters

Product Specifications:

The 2SC4482T-AN has a collector-base voltage (VCBO) of 160V, collector-emitter voltage (VCEO) of 160V, and emitter-base voltage (VEBO) of 5V. It can handle a collector current (IC) of up to 1.5A and features a power dissipation (PC) of 25W, making it a robust choice for demanding applications.

Quality and Reliability:

ON Semiconductor is committed to delivering high-quality products. The 2SC4482T-AN is manufactured with stringent quality control processes, ensuring reliability and performance consistency. This product is RoHS compliant, adhering to environmental standards and regulations.

For detailed product information, including mechanical specifications and packaging details, please refer to the official 2SC4482T-AN datasheet provided by ON Semiconductor.
