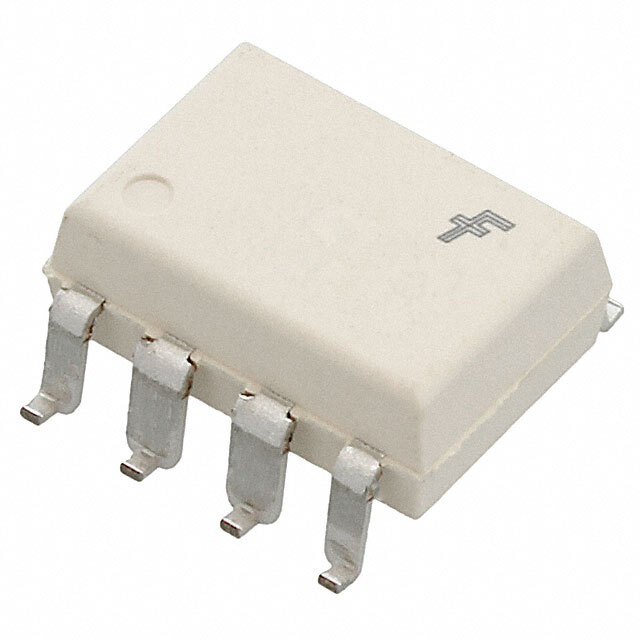

ON Semiconductor 6N136SV High-Speed Optocoupler

The ON Semiconductor 6N136SV is a high-speed optocoupler designed for applications requiring high data rate transmission and electrical isolation. This optocoupler features a gallium arsenide infrared LED and a high-speed photodetector. The combination of these components allows the 6N136SV to offer robust performance with a data rate of 1 Megabaud, making it suitable for digital signal isolation, signal transmission, and power supply control in a variety of industrial and commercial systems.

Key Features

• High Speed: With a 1 Mbaud data rate, the 6N136SV can efficiently handle high-speed signals, ensuring minimal signal delay and high data integrity.
• Electrical Isolation: The device provides electrical isolation between input and output with an isolation voltage of 2500 Vrms for 1 minute, which helps protect sensitive electronics from high voltage transients.
• Totem Pole Output: The totem pole output allows for both sinking and sourcing current, offering flexibility in interfacing with different logic levels.
• Wide Supply Voltage Range: Operating from 4.5 V to 5.5 V, the 6N136SV is compatible with most common logic supply voltages, simplifying integration into existing designs.
• Temperature Range: The device is operational over a wide temperature range from -40°C to +85°C, making it suitable for harsh environments.
• Regulatory Approvals: It meets UL recognized component standards, ensuring compliance with industry safety regulations.

Applications

• Microprocessor system interfaces
• Isolation of high-speed logic systems
• Instrumentation input/output isolation
• Digital isolation for A/D, D/A conversion
• Ground loop elimination
• Bus isolation

The ON Semiconductor 6N136SV is packaged in a standard 8-pin DIP configuration, providing ease of integration into PCB designs. Its high-speed performance, combined with the reliability of ON Semiconductor's manufacturing, makes the 6N136SV an excellent choice for designers looking to enhance their system's digital communication capabilities while maintaining electrical safety and signal integrity.
