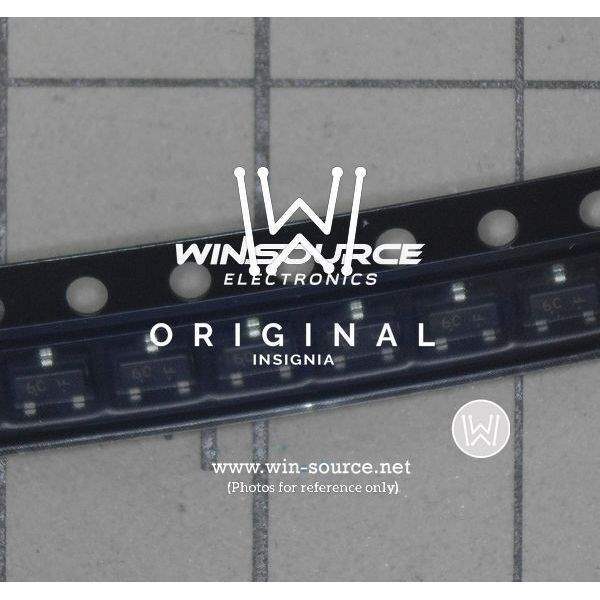

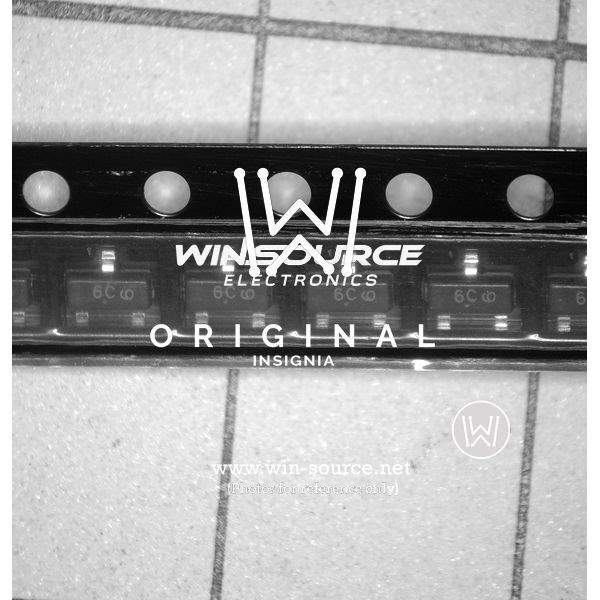

Product Overview: BC817-40LT1G - ON Semiconductor

The BC817-40LT1G is a high-performance NPN bipolar junction transistor (BJT) from ON Semiconductor, a leading provider of semiconductor-based solutions. This compact surface-mount transistor is designed for general-purpose switching and amplification applications, offering a versatile solution for a wide range of electronic circuits.

Key Features

• Device Type: NPN Bipolar Junction Transistor (BJT)
• Configuration: Single
• Collector-Emitter Voltage (VCEO): 45V
• Collector-Base Voltage (VCBO): 50V
• Emitter-Base Voltage (VEBO): 5V
• Collector Current (IC): 500mA
• DC Current Gain (hFE): 250 to 600 at 100mA
• Power Dissipation (Pd): 500mW
• Operating Temperature Range: -55°C to +150°C
• Package / Case: SOT-23-3

Applications

The BC817-40LT1G transistor is suitable for a diverse set of applications, including:

• Driver stages in hi-fi amplifiers and television circuits
• Low noise audio amplifiers
• Signal processing
• Switching loads in consumer electronics
• Control circuits in embedded systems

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The BC817-40LT1G is manufactured with the industry's highest standards, ensuring reliable performance even in the most demanding conditions. Its robust design is capable of withstanding significant voltage and current without performance degradation, making it a reliable choice for designers and engineers.

Environmental Compliance

The BC817-40LT1G is not only a high-performance component but also an environmentally friendly option. It complies with RoHS (Restriction of Hazardous Substances) standards, which restricts the use of certain hazardous materials found in electrical and electronic products. This compliance reflects ON Semiconductor's dedication to environmental sustainability and the promotion of green initiatives within the electronics industry.
