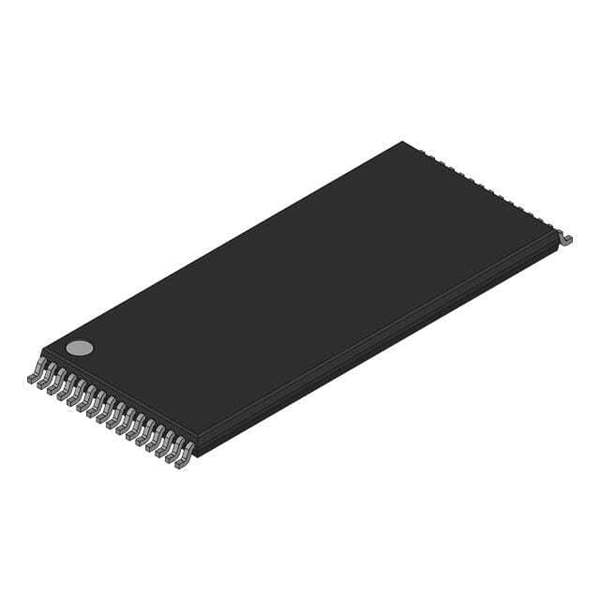

ON Semiconductor CAT28F020H-12 Flash Memory

The CAT28F020H-12 is a high-performance, 2 Megabit Flash memory device from ON Semiconductor that combines quality, reliability, and flexibility to meet the demanding storage needs of various applications. This non-volatile memory component is designed to offer a convenient and reliable solution for firmware storage, code shadowing, and data memory for a wide array of electronic products.

Key Features

• Memory Size: 2 Mbit (256K x 8)
• Access Time: 120 ns
• Operating Voltage: 5V ± 10%
• Endurance: 100,000 Program/Erase cycles
• Data Retention: 10 years
• Package: 32-pin PLCC (Plastic Leaded Chip Carrier)
• Temperature Range: -40°C to +85°C

Equipped with a fast access time of 120 nanoseconds, the CAT28F020H-12 ensures quick read operations, which is crucial for high-speed microprocessors and the efficient execution of firmware code. The device operates on a single 5V power supply, making it compatible with a wide range of systems without the need for complex power management.

The CAT28F020H-12 boasts an impressive endurance of 100,000 Program/Erase cycles and a data retention period of 10 years, ensuring the reliability and longevity of the data stored within. The 32-pin PLCC package is widely used and preferred for its reliability in various environmental conditions and ease of integration into system designs.

Applications

The versatile nature of the CAT28F020H-12 makes it suitable for a broad spectrum of applications, including but not limited to:

• Embedded systems
• Telecommunications
• Networking hardware
• Industrial control systems
• Automotive electronics
• Medical devices

In summary, the CAT28F020H-12 from ON Semiconductor is a robust, high-speed Flash memory device that offers a balanced combination of performance, durability, and ease of use for designers and engineers looking to integrate reliable storage solutions into their products.
