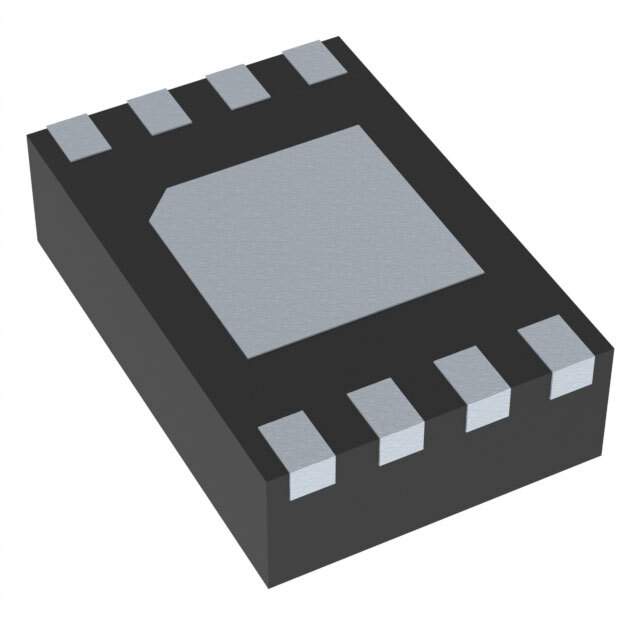

ON Semiconductor CAT5114VP2I00GT3 Digital Potentiometer

The CAT5114VP2I00GT3 is a high-quality digital potentiometer designed by ON Semiconductor, one of the leading manufacturers in the electronic components industry. This digital potentiometer is a versatile and reliable solution for a wide range of applications that require precise resistance adjustments.

Key Features

• Versatile Voltage Range: The CAT5114VP2I00GT3 operates at a single supply voltage ranging from 2.5V to 6V, making it suitable for various applications, from battery-operated devices to industrial control systems.
• Resolution: It boasts a 256-position resolution, providing fine adjustment capability for precise control over resistance settings.
• Endurance: This digital potentiometer offers an endurance of 100,000 wiper cycles, ensuring long-term reliability and performance.
• Non-Volatile Memory: The wiper position is stored in non-volatile memory, allowing the device to retain the last position before power-off, and ensuring a consistent performance between power cycles.
• Interface: It features an I2C-compatible interface, making it easy to integrate into most microcontroller-based systems.
• Compact Package: The CAT5114VP2I00GT3 comes in a compact TSOP-6 package, which is ideal for space-constrained applications.

Applications

The digital potentiometer is ideal for applications such as:

• Adjustable power supplies
• Calibration and tuning circuits
• Consumer electronics
• Automotive systems
• Portable instrumentation

Product Specifications

Parameter Value Resistance 100 kΩ Supply Voltage 2.5V to 6V Temperature Range -40°C to +85°C Package TSOP-6 Interface I2C-compatible

With its robust design and comprehensive features, the ON Semiconductor CAT5114VP2I00GT3 digital potentiometer is an excellent choice for designers looking for a reliable and flexible component to fine-tune resistance values in their electronic circuits.
