The CM1218-05SE is a cutting-edge ESD protection device from ON Semiconductor, designed to safeguard high-speed data lines from electrostatic discharge (ESD) threats. This compact and efficient component is an ideal solution for modern electronic devices that require robust protection without compromising signal integrity.

Key Features

• Channel Count: The CM1218-05SE offers five channels of ESD protection, making it suitable for multiple data lines in a single package.
• ESD Protection: It is capable of withstanding ESD strikes of ±15kV contact discharge and ±30kV air discharge, as per the IEC 61000-4-2 standard, ensuring reliable protection for sensitive components.
• Low Capacitance: The device boasts ultra-low loading capacitance of typically 0.8pF per channel, which is critical for maintaining signal integrity in high-speed applications.

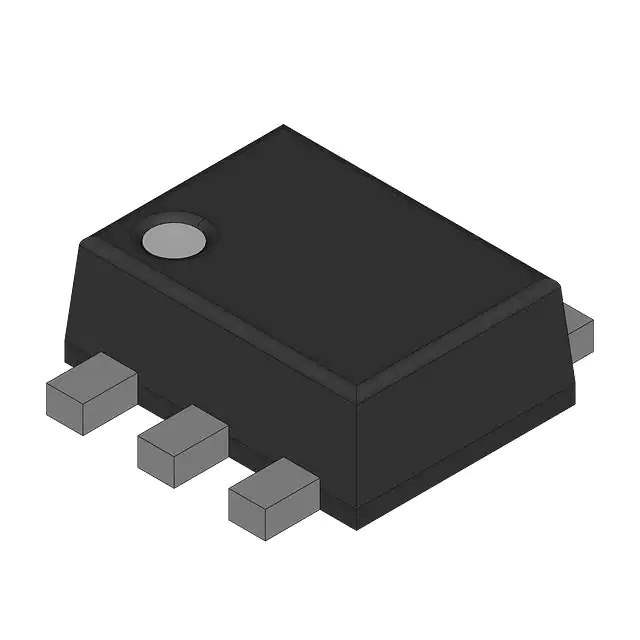

• Small Form Factor: The CM1218-05SE comes in a space-saving SOT-563 package, which is highly beneficial for portable and space-constrained designs.
• Fast Response Time: Its swift response to ESD events ensures that protected components are shielded promptly, minimizing the risk of damage.

Applications

The CM1218-05SE is versatile and can be employed in a variety of applications where ESD protection is crucial. It is particularly well-suited for:

• USB 2.0 and 3.0 interfaces
• HDMI 1.3 and 1.4 interfaces
• DisplayPort interfaces
• External storage interfaces (eSATA, Thunderbolt)
• Smartphone and tablet I/O ports
• Notebook and desktop computers
• Other high-speed data line applications

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the CM1218-05SE is no exception. It is manufactured to meet high industry standards, ensuring long-term reliability and performance in the most demanding environments.

Conclusion

With its combination of high ESD protection levels, low capacitance, and small package size, the CM1218-05SE from ON Semiconductor is an excellent choice for designers looking to enhance the durability and longevity of their electronic products without compromising on performance or space.
