Same model may have multiple batches, images only for reference.

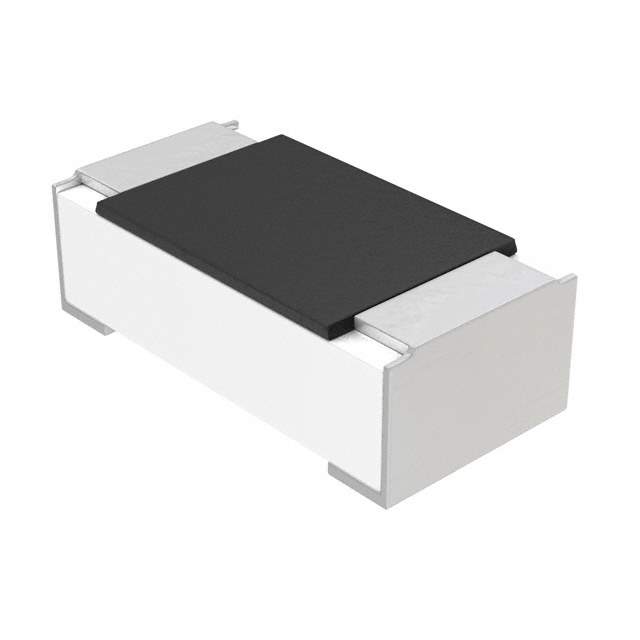

MCS04020C1004FE000 Real Image
Same model may have multiple batches, images only for reference.

MCS04020C1004FE000

Part No MCS04020C1004FE000
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 1M OHM 1% 1/10W 0402  /  1 MOhms ±1% 0.1W, 1/10W Chip Resistor 0402 (1005 Metric) Anti-Sulfur Thin Film
Datasheet
MCS04020C1004FE000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MCS - Professional
Package Tape & Reel
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Features Anti-Sulfur
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.015" (0.37mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2312 275 11005-NDR,MCS0402-1.00M-CFDKR,2312 275 11005,2312 275 11005-ND,231227511005,MCS0402-1.00M-CFTR,MCS0402-1.00M-CFCT
Standard Package 10,000
Win Source Part Number 1050931-MCS04020C1004FE000
Ultra Librarian 3D Model Ultra Librarian MCS04020C1004FE000 CAD Model

Description

This Vishay Beyschlag/Draloric/BC Components chip resistor is part of the MCS-Professional series and has a resistance of 1 mOhms with a ±1% tolerance.

  • Composition: Thin Film
  • Power Rating: 0.1W, 1/10W
  • Package: 0402 (1005 Metric)
  • Height: 0.015" (0.37mm)
  • Features: Anti-Sulfur
  • Application: Surface Mount
  • Package Type: Tape and Reel
  • Standard Package: 10,000
  • Operating Temperature Range: -55°C to 155°C
  • Temperature Coefficient: ±50ppm/°C
  • ECCN: EAR99 compliant
