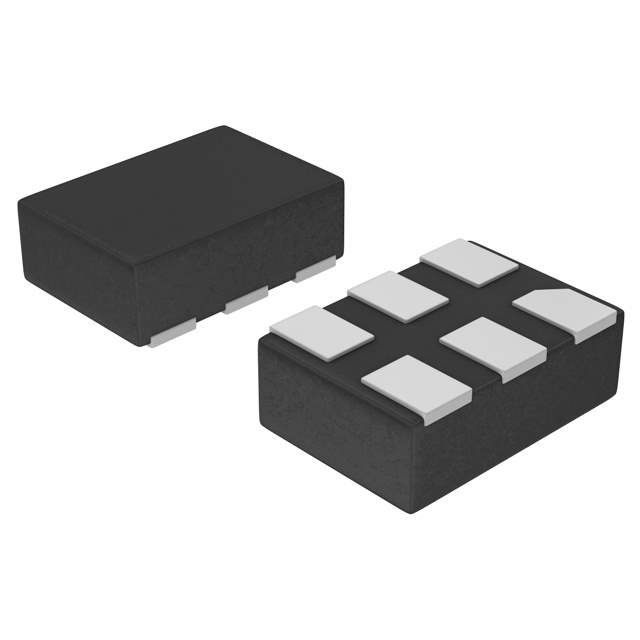

The CM1250-04QG from ON Semiconductor is a state-of-the-art ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) and other voltage-induced transient events. This compact and robust component is an ideal solution for protecting sensitive electronic circuits found in a variety of applications, ranging from consumer electronics to industrial systems.

Key Features

• ESD Protection: The CM1250-04QG offers exceptional ESD protection, meeting IEC61000-4-2 Level 4 standards, which ensures that the device can withstand ESD events of up to ±8kV (contact discharge) and ±15kV (air discharge).
• Low Capacitance: With ultra-low line capacitance, typically just 0.6pF per I/O, this device preserves signal integrity for high-speed interfaces without compromising on protection.
• Multi-Line Protection: The component is capable of protecting up to four data lines simultaneously, making it a space-efficient choice for modern compact electronic designs.
• Low Clamping Voltage: The low dynamic resistance and clamping voltage of the CM1250-04QG ensure minimal impact on the protected circuit during transient conditions.
• Package: It is offered in a space-saving, lead-free, RoHS-compliant, 10-pin UDFN package, which is suitable for use in the latest high-density circuit board designs.

Applications

The CM1250-04QG is versatile and can be used in a broad range of applications. It is particularly well-suited for:

• USB 2.0 and 3.0 Interfaces
• HDMI 1.3 and 1.4 Ports
• Digital Visual Interface (DVI) Ports
• DisplayPort Interfaces
• Thunderbolt Ports
• Other High-Speed Data Interfaces

Performance and Reliability

ON Semiconductor's commitment to quality ensures that the CM1250-04QG provides reliable and consistent performance. The device's robust design and manufacturing process guarantee that it will perform to specifications even under the harshest conditions, protecting valuable electronic equipment from damage and reducing the risk of failure due to ESD events.

Conclusion

For designers looking to enhance the ESD protection of their high-speed data interfaces, the CM1250-04QG from ON Semiconductor represents an optimal mix of performance, size, and reliability. Its ability to defend against potent ESD strikes while maintaining signal integrity makes it an indispensable component in the protection of today's electronic devices.
