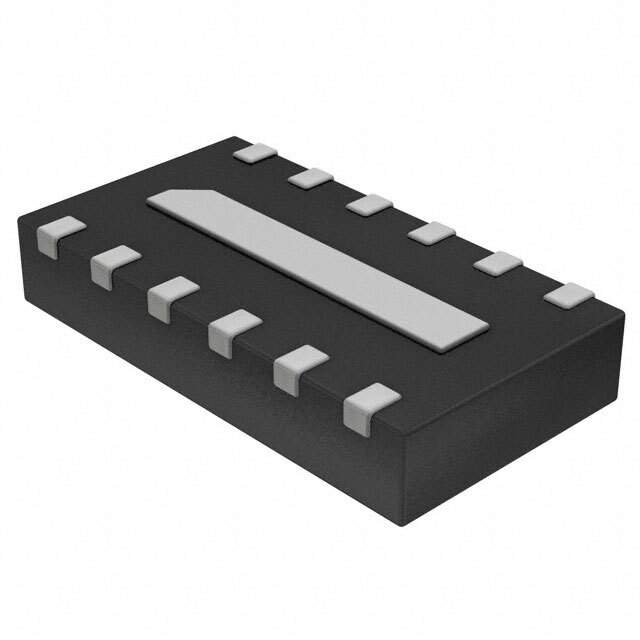

ON Semiconductor CM1631-06DE EMI Filter with ESD Protection

The ON Semiconductor CM1631-06DE is a cutting-edge solution designed to address the increasing demand for electromagnetic interference (EMI) filtering and electrostatic discharge (ESD) protection in modern electronic devices. This highly integrated component is ideal for applications requiring both signal integrity and robust protection against transient voltage spikes.

Key Features

• Integrated EMI Filtering: The CM1631-06DE includes integrated pi-style EMI filters that provide excellent noise suppression capabilities, ensuring clean signal transmission and reducing the need for additional external filtering components.
• ESD Protection: With built-in ESD protection that meets IEC 61000-4-2 Level 4 standards, the device safeguards sensitive circuitry from electrostatic discharges as high as ±15kV (air discharge) and ±8kV (contact discharge).
• Low Channel Capacitance: The low channel input/output capacitance maintains signal integrity without compromising the speed or bandwidth of the protected lines.
• Compact Design: The CM1631-06DE is housed in a small, lead-free package, making it suitable for space-constrained applications without sacrificing performance.
• Multiple Channel Configurations: It supports up to six channels of EMI filtering and ESD protection, making it versatile for a range of applications, including USB interfaces, video lines, and other high-speed data lines.

Applications

The ON Semiconductor CM1631-06DE is designed for use in a variety of electronic devices where EMI and ESD protection are critical. It is particularly well-suited for:

• Mobile Phones
• Personal Digital Assistants (PDAs)
• Notebook Computers
• Digital Cameras
• Portable Media Players

Technical Specifications

With a wide operating temperature range and the ability to filter and protect multiple lines in a single package, the CM1631-06DE is a robust solution for designers looking to enhance the reliability and performance of their electronic systems. The device's technical specifications make it a suitable choice for high-speed data interfaces that require minimal signal distortion and maximal protection.
