The FCPF165N65S3R0L from ON Semiconductor is a high-performance field-effect transistor (FET) designed for a wide range of power applications. This N-channel MOSFET is part of ON Semiconductor's portfolio of energy-efficient devices, offering designers a balance of robustness, reliability, and efficiency for their power circuits.

Key Features

• Voltage Rating: The FCPF165N65S3R0L boasts a maximum drain-source voltage (V_DS) of 650V, making it suitable for high-voltage applications.
• Current Capacity: It can handle a continuous drain current (I_D) of up to 34A, providing ample current for a variety of uses.
• Low R_DS(on): With a low on-resistance of 165 mΩ (max), this MOSFET ensures reduced conduction losses, enhancing overall efficiency.
• Fast Switching: The device features fast switching capabilities, which is critical for reducing switching losses and improving performance in high-frequency applications.
• SuperFET® III Technology: It utilizes ON Semiconductor's advanced SuperFET® III technology, which is engineered for high performance in hard-switching applications.
• Body Diode Characteristics: The MOSFET includes an intrinsic body diode with a fast recovery time, which is beneficial for applications requiring a freewheeling or flyback diode.

Applications

The FCPF165N65S3R0L is versatile and can be used in various applications, including:

• Power supplies for servers, telecom, and data centers
• Solar inverters and energy storage systems
• Uninterruptible power supplies (UPS)
• Industrial power supplies and motor drives
• Electric vehicle (EV) charging infrastructure

Reliability and Packaging

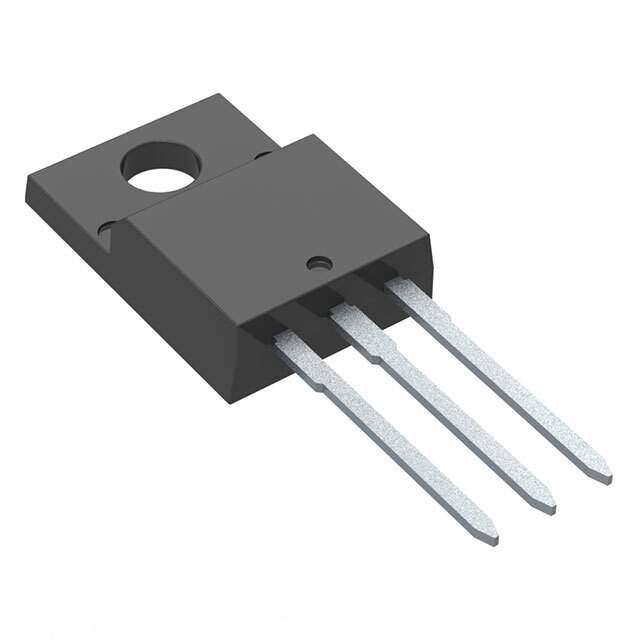

ON Semiconductor's FCPF165N65S3R0L is packaged in a TO-220F, which is a widely used and reliable package for high-power devices. The package is designed for optimal thermal performance and durability, ensuring that the MOSFET operates reliably even under demanding conditions. With its combination of advanced technology, high voltage and current handling capabilities, and robust packaging, the FCPF165N65S3R0L is an excellent choice for designers looking to enhance the efficiency and reliability of their power management systems.
