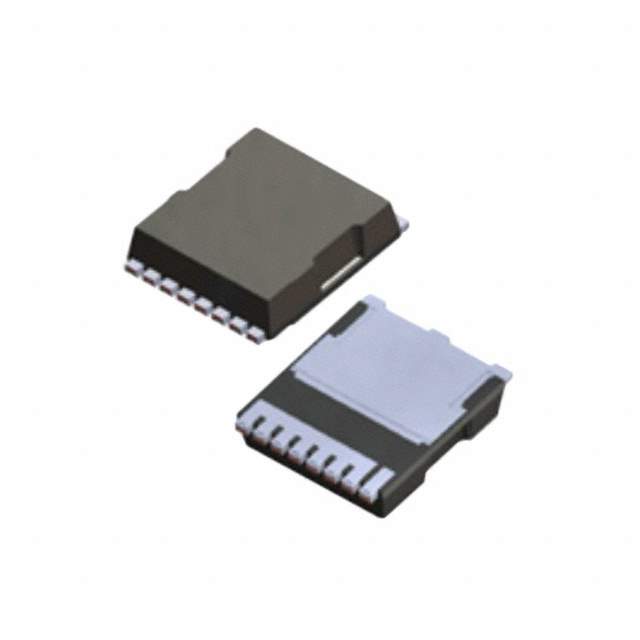

The ON Semiconductor FDBL86561-F085 is a state-of-the-art N-Channel PowerTrench® MOSFET designed for high-efficiency power management applications. This MOSFET features advanced technology that enables it to deliver superior performance in terms of switching speeds, power handling, and energy efficiency, making it an ideal choice for a broad range of electronic devices and systems.

Key Features:

• RDS(on): The FDBL86561-F085 boasts a low on-resistance (RDS(on)) of typically 1.7 mΩ at VGS = 10 V, which translates to reduced conduction losses and improved overall efficiency.
• PowerTrench® Technology: ON Semiconductor's proprietary PowerTrench® technology enables this MOSFET to achieve low gate charge (Qg) and capacitance (Ciss), resulting in faster switching speeds and lower switching losses.
• High Current Capability: With a continuous drain current (ID) of 100 A, this MOSFET can handle high current applications with ease, making it suitable for power supply and motor control circuits.
• High Temperature Performance: The device is designed to operate effectively at high temperatures, with a maximum junction temperature (TJ) of 175°C, ensuring reliability under thermal stress.
• Robust Package: Encased in an F085, RoHS compliant Power56 package, the FDBL86561-F085 is designed for optimal thermal performance and minimal footprint on PCBs.

Applications:

The ON Semiconductor FDBL86561-F085 is versatile and can be used in a variety of applications, including:

• DC/DC converters
• Power supplies for servers, telecom, and industrial uses
• Motor drives
• Synchronous rectification
• Battery management systems
• Load switches

With its combination of high performance, efficiency, and reliability, the ON Semiconductor FDBL86561-F085 N-Channel PowerTrench® MOSFET is an excellent choice for designers looking to enhance their power management systems. Its advanced features and robust design ensure that it can meet the demands of modern electronic applications.
