Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel
Transistor Polarity N-Channel
Technology MOSFET
Vds - Drain-Source Breakdown Voltage 30V
Id - Continuous Drain Current 30A, 75A
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Maximum) at Id, Vgs 1.3mOhm at 30A, 10V
Gate Source Voltage(th) (Maximum) at Id 2.5V at 1mA
Gate Charge (Qg) (Maximum) at Vgs 94nC at 10V
Gate Source Voltage (Maximum) ±20V
Input Capacitance (Ciss) (Maximum) at Vds 5860pF at 15V
Power Dissipation (Maximum) 2.4W, 54W
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD

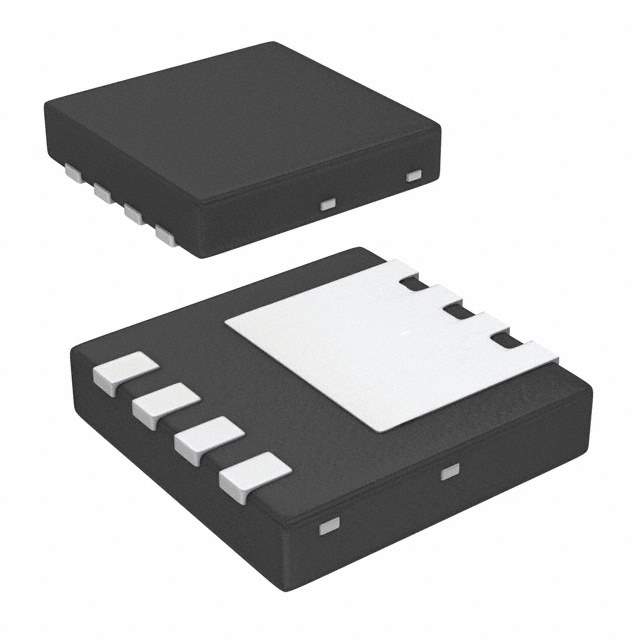

Supplier Device Package Power33
Manufacturer Package 8-PowerWDFN
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1173813-FDMC8010
Manufacturer Homepage www.fairchildsemi.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name FDMC8010
Introduction Date December 01, 2011
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FDMC8010 CAD Model

Description

The FDMC8010 is a cutting-edge silicon power MOSFET from ON Semiconductor, designed for a wide array of applications requiring high efficiency and power density. This device is part of ON Semiconductor's portfolio of power management solutions, and it stands out for its low on-resistance and high switching speeds.

Key Features

  • Low R<sub>DS(on): The FDMC8010 boasts an exceptionally low on-resistance, which minimizes conduction losses and improves overall efficiency in power conversion systems.
  • High Current Capacity: With the ability to handle significant current levels, this MOSFET is suitable for high-power applications and can deliver the performance needed for demanding environments.
  • Power56 Package: Encased in ON Semiconductor's Power56 package, the FDMC8010 offers a compact footprint without compromising on thermal performance, making it ideal for space-constrained applications.
  • Fast Switching: The device is engineered for fast switching speeds, which reduces switching losses and enables operation at higher frequencies, thus allowing for smaller passive components and further space savings.

Applications

The versatility of the FDMC8010 allows it to be used in a variety of applications, including:

  • DC/DC converters for computing and telecom systems
  • Synchronous rectification in power supplies
  • Motor drives and inverter circuits
  • Battery management systems for electric vehicles and energy storage
  • Point-of-load (POL) modules and VRMs (Voltage Regulator Modules)

Performance and Quality

ON Semiconductor's commitment to quality ensures that the FDMC8010 meets the highest standards of performance and reliability. This MOSFET is a testament to the company's dedication to providing innovative solutions that address the ever-increasing demands of power efficiency in modern electronic systems.

Whether you are developing power supplies, working on power management in automotive applications, or designing high-efficiency DC/DC converters, the FDMC8010 from ON Semiconductor is a reliable and powerful component that can help elevate your project's performance.
