The ON Semiconductor FGHL75T65MQDT is a state-of-the-art insulated gate bipolar transistor (IGBT) designed for high-efficiency and high-speed switching applications. This IGBT is part of ON Semiconductor's portfolio of energy-efficient devices, which are crafted to meet the demanding requirements of modern electronic systems. The FGHL75T65MQDT is optimized for use in a variety of applications, including inverters, converters, motor drives, and power management systems.

With a collector-emitter voltage (Vce) of 650V and a continuous collector current (Ic) rating of 75A at 25°C, this IGBT is capable of handling significant power levels. Its maximum junction temperature of 175°C allows for operation in high-temperature environments, ensuring reliability and longevity in harsh conditions.

The FGHL75T65MQDT features a low on-state voltage drop (Vce(sat)) which reduces conduction losses and improves overall system efficiency. Additionally, it boasts a fast switching speed, which minimizes switching losses, further enhancing the efficiency of the systems in which it is used. This combination of low conduction and switching losses makes the FGHL75T65MQDT an excellent choice for energy-sensitive applications.

ON Semiconductor has integrated a rugged, soft-recovery diode into the design. This diode provides protection against over-voltage conditions and ensures smooth recovery from high-current pulses. The device also includes an advanced trench gate field-stop technology, which helps to achieve superior performance by reducing gate charge and improving avalanche ruggedness.

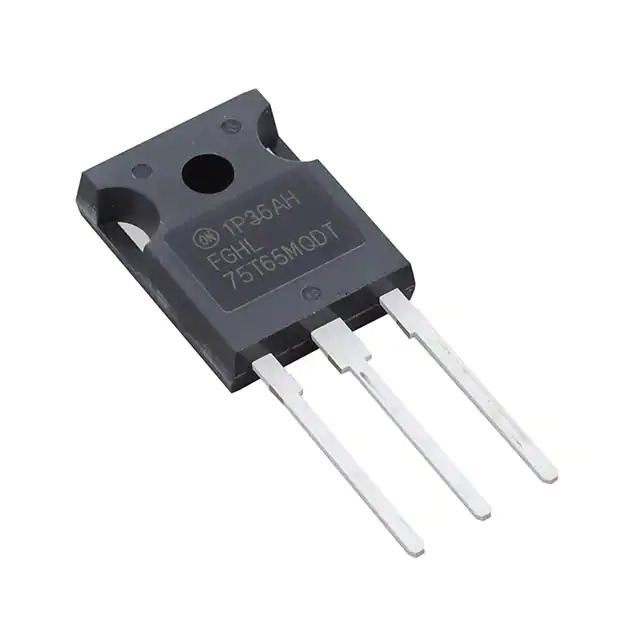

The FGHL75T65MQDT comes in a TO-247 package, which is known for its high power dissipation capability. The package is designed to be easily mountable on a heatsink, which is critical for maintaining thermal stability and extending the life of the IGBT.

In summary, the ON Semiconductor FGHL75T65MQDT IGBT is an excellent choice for designers looking to optimize their power systems for efficiency and reliability. With its high current handling, low loss characteristics, and robust design, it stands as a testament to ON Semiconductor's commitment to delivering high-performance power solutions.
