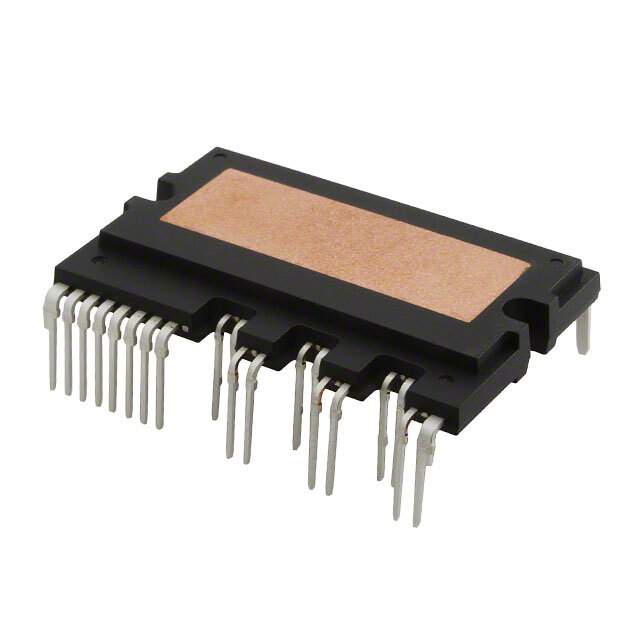

Product Overview: FSBB20CH60CT from ON Semiconductor

The FSBB20CH60CT is a cutting-edge Smart Power Module (SPM) designed and manufactured by ON Semiconductor, a global leader in power and signal management solutions. This intelligent power module is part of the Motion SPM® 3 series and is specifically engineered to drive high-performance applications requiring efficient power conversion and reliable motor control.

Featuring a 600V, 20A three-phase IGBT inverter bridge, the FSBB20CH60CT includes six IGBTs, six fast recovery diodes, a thermistor, a dedicated high-voltage IC for gate driving, and protection circuitry, all integrated into a compact DIP package. This integration results in a reduction of component count, board space, and system cost, making it an ideal solution for a wide range of applications including air conditioners, washing machines, refrigerators, and other home appliances, as well as industrial motor drives and fans.

The module boasts an advanced level of integration, which simplifies design and enhances reliability. The built-in HVIC employs a negative voltage handling capability for better system ruggedness and overcurrent protection. Its bootstrap operation eliminates the need for an auxiliary power supply, further minimizing the overall design complexity.

The FSBB20CH60CT is equipped with multiple protection features, including under-voltage lockout (UVLO) for both high-side and low-side channels, over-current protection (OCP), and fault reporting. These features ensure safe operation under a variety of fault conditions. The module also includes a built-in NTC thermistor for temperature monitoring, which aids in the prevention of thermal overloads and enhances the longevity of the device.

ON Semiconductor's focus on quality and reliability is evident in the FSBB20CH60CT, which is designed to meet the stringent requirements of industrial applications. With its high level of performance, integration, and protection features, the FSBB20CH60CT from ON Semiconductor stands out as a top-tier solution for designers looking to optimize their motor control systems with a reliable and efficient power module.
