Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Bulk
Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 200V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Maximum) at If 1.1V at 4A
Current - Reverse Leakage at Vr 5μA at 200V
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package 4-SIP, KBL
Supplier Device Package KBL
Family Part Number KBL02
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1192649-KBL02
Manufacturer Homepage www.semtech.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Consumer Electronics, Audio
Ultra Librarian 3D Model Ultra Librarian KBL02 CAD Model

Description

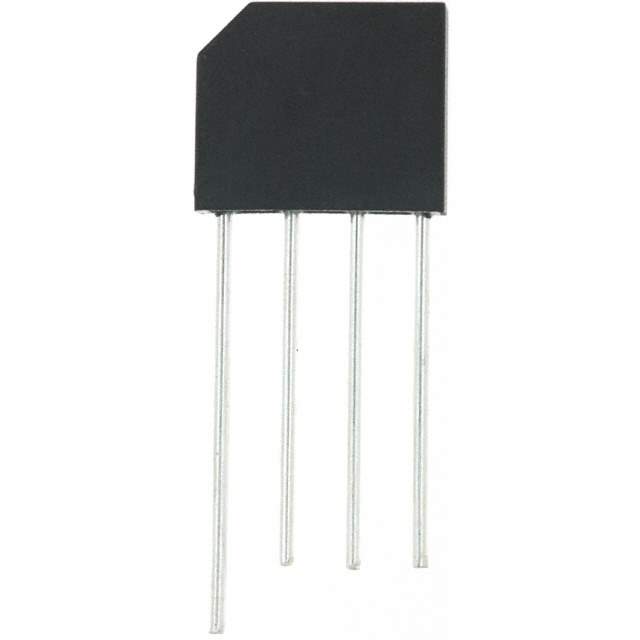

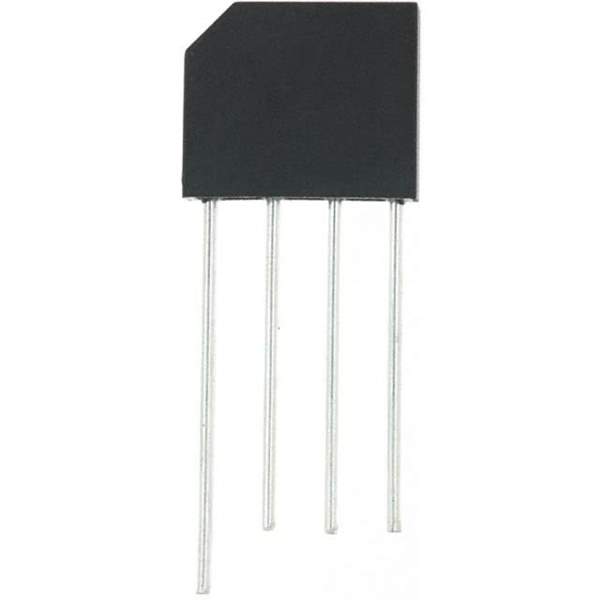

Introducing the KBL02 Bridge Rectifier from ON Semiconductor

ON Semiconductor's KBL02 is a single-phase bridge rectifier that provides efficient and reliable performance for a wide array of applications. This robust electronic component is designed to convert an input AC current into a steady DC current, which is essential for powering a vast range of electronic circuits and devices. The KBL02 is a versatile solution that can be used in a variety of electronic products, from power supplies to battery chargers, and consumer electronics to industrial equipment.

Key Features of the KBL02 Bridge Rectifier

  • High Current Capability: The KBL02 can handle a high forward current of 4.0 amperes, making it suitable for circuits that require a significant amount of power.
  • Peak Repetitive Reverse Voltage: With a peak repetitive reverse voltage (VRRM) of 200 volts, the KBL02 can withstand high voltage environments, ensuring durability and stability in various electrical setups.
  • Low Forward Voltage Drop: The low forward voltage drop feature reduces power loss and improves efficiency, which is critical for maintaining the performance of the overall system.
  • High Surge Current Capability: The KBL02 can handle high surge currents, providing additional protection against sudden spikes in current, which can be detrimental to electronic components.
  • Isolation Voltage: This rectifier has an isolation voltage of 1500 volts, which means it can effectively isolate the input AC current from the output DC current, ensuring user safety and protecting the integrity of the device.

Reliable Construction

The KBL02 is encapsulated in a robust package that is designed to withstand harsh conditions and provide a long operational lifespan. The component is molded in a plastic material that offers high insulation and mechanical protection. Its through-hole mounting design allows for easy installation on printed circuit boards (PCBs), making it a convenient choice for both DIY enthusiasts and professional engineers.

Applications

Due to its high efficiency and reliability, the KBL02 is an excellent choice for a range of applications, including:

  • Switching power supplies
  • Adapters
  • On-board DC/DC converters
  • LED lighting
  • Motor controllers
  • Audio equipment

ON Semiconductor's commitment to quality ensures that the KBL02 bridge rectifier meets the stringent requirements of modern electronic devices, providing a dependable and cost-effective solution for power conversion needs.
