The MBRF745 from ON Semiconductor is a highly efficient, robust Schottky rectifier designed for use in a wide range of power management applications. This rectifier is a popular choice among engineers due to its low forward voltage drop and high surge current capability, making it ideal for high-frequency and energy-sensitive circuits.

Key Features

• Voltage Rating: The MBRF745 is rated for a maximum repetitive peak reverse voltage (V<sub>RRM) of 45V, making it suitable for medium voltage applications.
• Current Capacity: It has a high forward continuous current (I<sub>F(AV)) of 7.5A, which allows it to handle significant power levels without overheating.
• Low Forward Voltage Drop: The device exhibits a low forward voltage drop (V<sub>F), which enhances overall system efficiency by reducing power losses during conduction.
• High Surge Capability: With a peak surge current (I<sub>FSM) rating, this Schottky rectifier can handle high transient currents, making it robust against sudden voltage spikes.

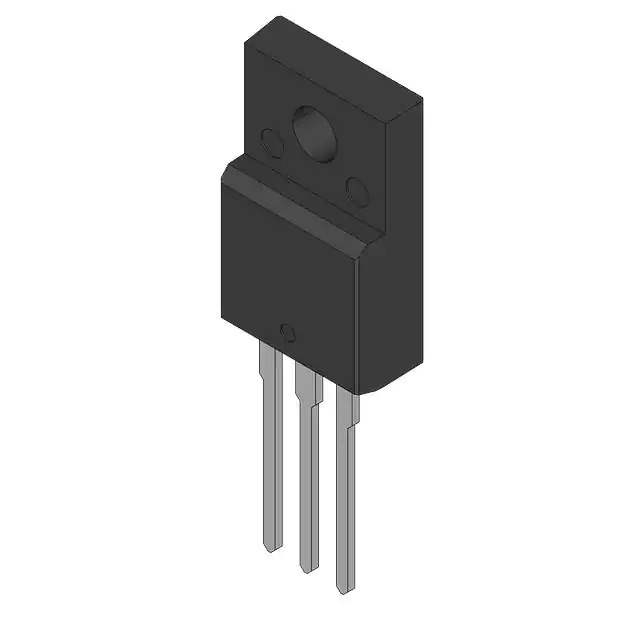

• Package: It comes in a TO-220 FullPak package, which provides isolation from the printed circuit board and eliminates the need for additional insulating hardware.
• Operating Temperature Range: The MBRF745 operates effectively over a wide temperature range, ensuring reliability in various environments.

Applications

The MBRF745 is versatile and can be used in a variety of applications, including:

• Switch-mode power supplies (SMPS)
• Power factor correction (PFC) circuits
• Free-wheeling diodes in converters and motor control circuits
• DC-DC converters
• Automotive applications requiring high reliability

Reliability and Performance

ON Semiconductor's MBRF745 is designed with reliability in mind. It is characterized by its ability to maintain performance over time, even in demanding conditions. Whether you're developing power supplies or integrating into automotive electronics, the MBRF745 provides the efficiency and robustness needed for critical applications.

By choosing the MBRF745 Schottky rectifier, designers are assured of a component that not only meets but exceeds the requirements for efficient and reliable power conversion and management.
