Products specifications

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 6.5 V to 18 V
Logic Voltage - VIL, VIH 0.8V, 2.6V
Current - Peak Output (Source, Sink) 1.5A, 1.5A
Input Type Inverting
Rise and Fall Time 31ns, 32ns
Temperature Range - Operating 0°C to 150°C (TJ)
Mounting Through Hole

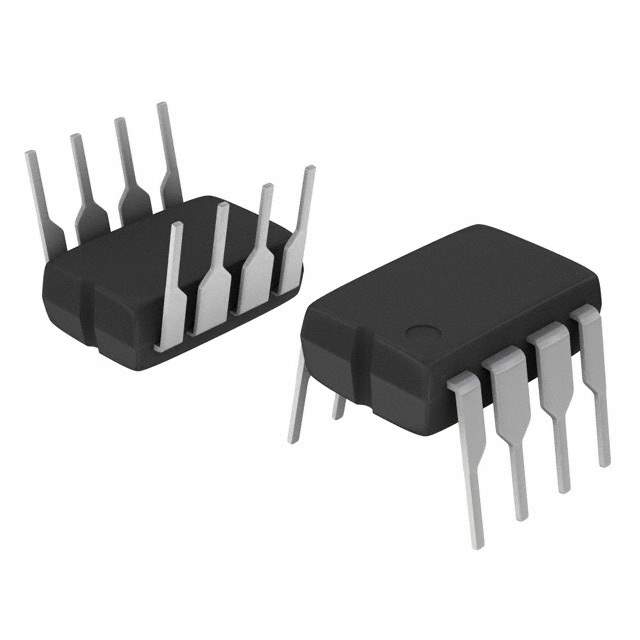

Case / Package 8-PDIP
Win Source Part Number 138601-MC34151PG
Ultra Librarian 3D Model Ultra Librarian MC34151PG CAD Model

Description

ON Semiconductor MC34151PG High-Speed Dual MOSFET Drivers

The ON Semiconductor MC34151PG is a high-performance dual non-inverting MOSFET driver designed for use in a variety of applications requiring efficient power management and high-speed switching. This integrated circuit is part of ON Semiconductor's extensive portfolio of power management devices, known for their reliability and performance.

The MC34151PG is capable of delivering peak currents up to 1.5 A, making it suitable for driving large capacitive loads with high slew rates. This feature ensures that MOSFETs switch on and off rapidly, reducing transition losses and improving overall efficiency. The driver operates over a wide supply voltage range from 4.5 V to 18 V, accommodating a broad spectrum of power systems and ensuring compatibility with various logic levels.

With its dual non-inverting configuration, the MC34151PG offers flexibility in controlling two independent MOSFETs or a single H-bridge arrangement. This versatility is beneficial for motor control applications, power converters, and class D switch-mode amplifiers. The device's fast propagation delays and short rise and fall times are critical for applications that demand swift response times and precision control.

The MC34151PG is also equipped with robust protection features. Its output pins are designed to withstand voltage spikes during switching, which enhances the longevity and reliability of the device. Additionally, the thermal shutdown feature protects the IC from overheating, ensuring safe operation under high-current conditions.

This driver IC comes in a PDIP-8 package, making it easy to integrate into a variety of circuit boards. The package is designed for through-hole mounting, which is ideal for prototyping and production in environments where mechanical robustness is a priority.

In summary, the ON Semiconductor MC34151PG is a versatile and robust dual MOSFET driver that meets the needs of high-speed and high-power switching applications. Its wide voltage range, high peak current capability, and protection features make it a reliable choice for engineers and designers looking to optimize their power management solutions.
