MC34167TH

Part No MC34167TH
Manufacturer ON Semiconductor
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description POWER SWITCHING REGULATORS
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer ON Semiconductor
Packaging Tube
Part Status Obsolete(EOL)
Function Step-Up, Step-Down
Output Configuration Positive or Negative
Topology Buck, Boost
Output Type Adjustable
Number of Outputs 1
Input Voltage MIN 7.5V
Voltage Input MAX 40V
Output Voltage 5.05V
Output Voltage MAX 40V (Switch)
Output Current 5.5A (Switch)
Frequency - Switching 72kHz
Synchronous Rectifier No
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting Style Through Hole

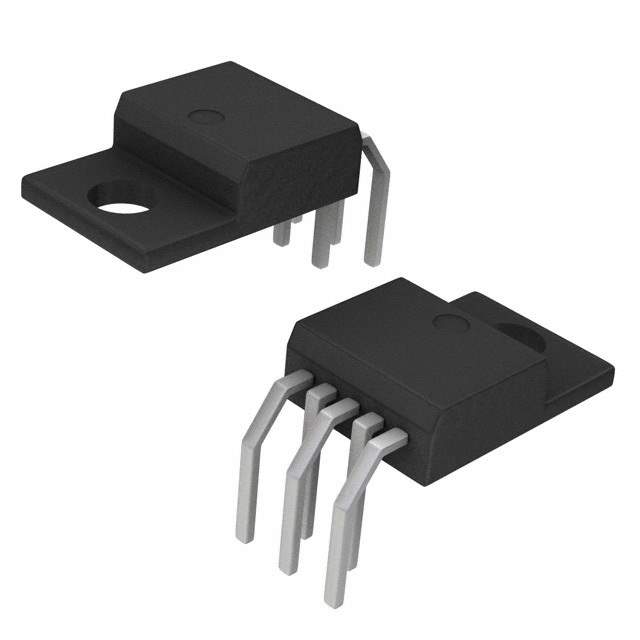

Package TO-220-5 Formed Leads
Manufacturer Package TO-220-5 Horizontal
Win Source Part Number 1218679-MC34167TH
Manufacturer Homepage www.onsemi.com
Family Name MC34167
Introduction Date January 15, 1997
ECCN EAR99
Country of Origin Czech Republic, Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian MC34167TH CAD Model

Description

The MC34167TH is a highly versatile and durable voltage regulator integrated circuit (IC) designed and manufactured by ON Semiconductor. It is an essential component for power management applications and is widely used in various electronic devices and systems. This IC is designed to offer a high-performance solution for step-up, step-down, and voltage-inverting applications with a minimum number of external components.

Key Features:

  • Output Voltage: The MC34167TH provides an adjustable output voltage range that can be set from 1.25 V to 40 V, making it suitable for a wide array of uses.
  • High Efficiency: With its high-efficiency operation, this IC ensures minimal heat generation and optimal power conversion, which is critical for maintaining the longevity of electronic components.
  • Output Current: Capable of delivering up to 5 A of output current, this regulator can handle substantial loads, making it ideal for heavy-duty applications.
  • Protection Features: It incorporates various protection features, including thermal shutdown, current-limiting, and safe area compensation, ensuring reliable operation under extreme conditions.
  • Frequency Operation: The MC34167TH operates at a switchable frequency of 52 kHz, which allows for smaller-sized filter components, thereby reducing overall space and cost.
  • Package: It is available in a thermally enhanced 5-lead TO-220 package, ensuring efficient heat dissipation and robustness in physical design.

Applications:

The versatility of the MC34167TH makes it suitable for a vast range of applications, including:

  • Power supplies for computer peripherals and office equipment
  • DC to DC converters
  • Automotive accessories
  • Telecommunication equipment
  • Industrial control systems

ON Semiconductor's commitment to quality ensures that the MC34167TH meets the stringent requirements of the electronics industry, providing a reliable and efficient power management solution. Whether for design engineers or hobbyists, this voltage regulator IC stands as a top choice for those who require a dependable and adaptable component for their power supply needs.
