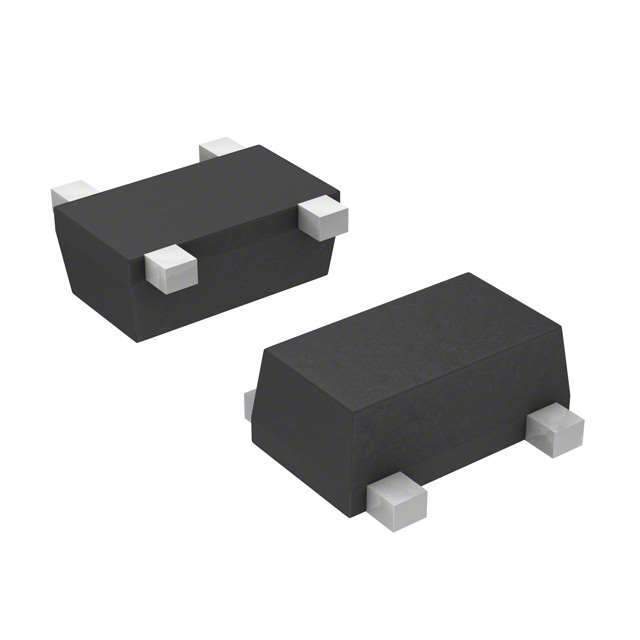

The MCH4009-TL-H is a high-performance N-Channel MOSFET from ON Semiconductor, renowned for its efficiency and reliability in various applications. This MOSFET is a fundamental component for designers focusing on power management and conversion in compact electronic devices.

Key Features:

• Low On-Resistance: The device features a very low on-resistance (R<sub>DS(on)), which results in minimized conduction losses and enhances overall efficiency.
• High-Speed Switching: Designed for fast switching applications, the MCH4009-TL-H ensures that power conversion processes are both smooth and quick, which is critical for modern electronic equipment.
• Low Drive Voltage: It operates at a low drive voltage, making it suitable for use in low-voltage circuits and extending its compatibility with various control circuits and drivers.

Applications:

This MOSFET is widely used in a range of applications due to its versatile performance characteristics. These include:

• Power Supply Circuits
• DC/DC Converters
• Motor Drives
• Switching Regulators
• Load Switches

Specifications:

Parameter Value Drain-Source Voltage (V<sub>DS) 30V Continuous Drain Current (I<sub>D) 6A Power Dissipation (P<sub>D) 1.25W Operating Temperature Range -55°C to +150°C

The MCH4009-TL-H is packaged in a compact, surface-mount format, which is ideal for space-constrained applications. Its robust construction ensures that it can withstand the rigors of operation in harsh environments, making it a reliable choice for industrial and automotive applications as well.

ON Semiconductor's commitment to quality ensures that the MCH4009-TL-H MOSFET meets the highest standards of performance and durability, making it a preferred choice for engineers and designers looking for a dependable power switching solution.
