The MJL21195G is a high-power, high-performance transistor from ON Semiconductor, designed to deliver efficient and reliable operation for a wide range of applications. This silicon power transistor is part of the MJL series, renowned for its excellent gain characteristics and safe operating area.

Featuring a triple-diffused planar construction, the MJL21195G is a PNP transistor that offers superior switching speeds and a collector-emitter voltage (VCEO) of 250V. Its robust design ensures a continuous collector current (IC) of up to 16A, making it an ideal choice for audio amplifiers, power regulation circuits, and general-purpose power amplification tasks.

With a maximum operating junction temperature of 150°C, the MJL21195G maintains stability and performance even under thermal stress. Its high transition frequency (fT) of 4MHz ensures that the transistor can handle high-speed signal processing with minimal distortion, making it a favorite among audiophiles and professional audio equipment manufacturers.

Key Features:

• PNP Bipolar Power Transistor
• Collector-Emitter Voltage (VCEO): 250V
• Collector Current (IC): 16A
• Power Dissipation (Pd): 200W
• High DC Current Gain (hFE): 15 - 60 at IC = 8A
• Transition Frequency (fT): 4MHz
• Operating Junction Temperature Range: -65°C to +150°C
• TO-264 Package for Efficient Heat Dissipation

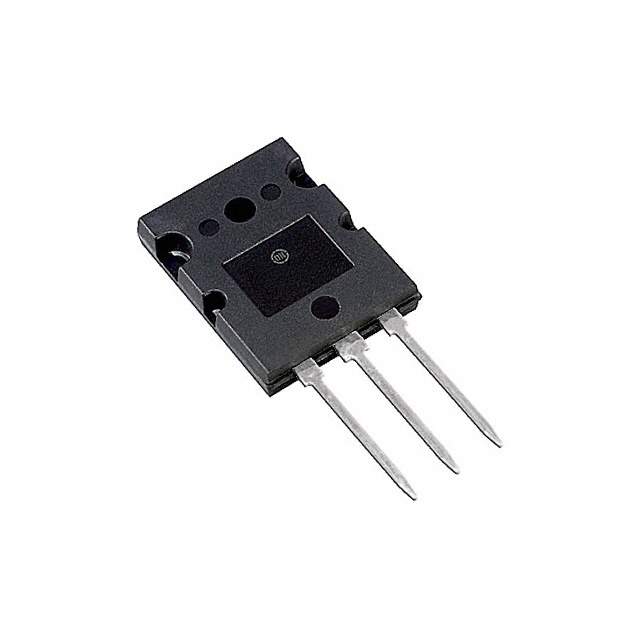

ON Semiconductor has equipped the MJL21195G with a TO-264 package, which is not only compact but also facilitates efficient heat dissipation, ensuring the longevity of the device. The package is designed for easy mounting on heat sinks, which is crucial for applications that generate significant amounts of heat.

The MJL21195G is a testament to ON Semiconductor's commitment to providing high-quality components that meet the rigorous demands of modern electronic devices. Whether you're designing professional audio equipment or looking for a reliable transistor for high-power switching applications, the MJL21195G offers the performance and durability needed for your projects.
