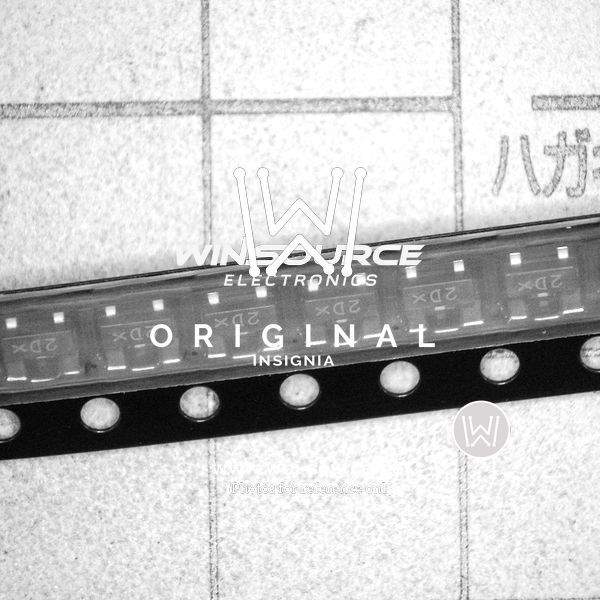

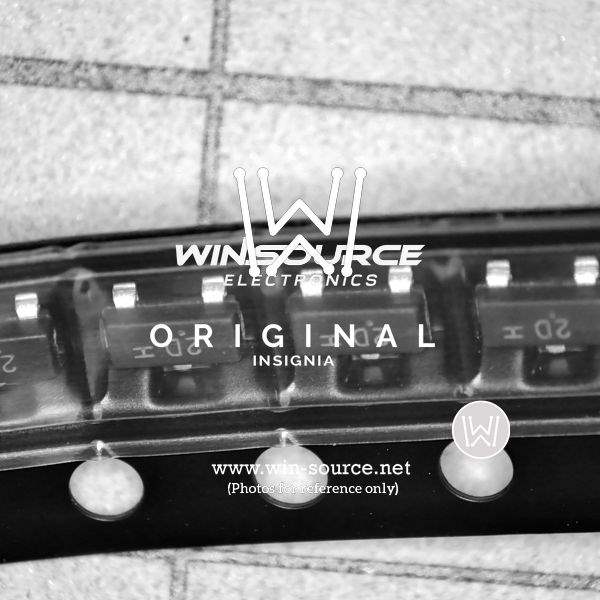

MMBTA92LT1G

Part No MMBTA92LT1G
Manufacturer ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS PNP 300V 0.5A SOT23
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Transistor Polarity PNP
Maximum Current Collector 500mA
VCEO Maximum Collector-Emitter Breakdown Voltage 300V
Max Vce (sat) 500mV @ 2mA, 20mA
Collector Cut-off Current(Max) 250nA (ICBO)
Typical Gain (hFE) (Min) 25 @ 30mA, 10V
Maximum Power Dissipation 300mW
Frequency - Transition 50MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-23-3 (TO-236)
Win Source Part Number 095868-MMBTA92LT1G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Power Management, Automotive
Family Name MMBTA92L
Introduction Date June 08, 1998
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian MMBTA92LT1G CAD Model

Description

MMBTA92LT1G from ON Semiconductor is a single bipolar junction transistor commonly considered for high-voltage small-signal switching and amplification roles in compact electronic designs. Engineers may evaluate this device for interface stages, level-shifting circuits, driver functions, and general-purpose analog or mixed-signal support where a discrete BJT is preferred over more complex integrated solutions. Its SMD format makes it relevant for space-constrained consumer, industrial, communications, and control applications. For procurement and design-in decisions, this part is best positioned as a practical discrete transistor option from a widely recognized manufacturer, but designers should confirm fit against the latest datasheet and qualification needs. The lifecycle status for MMBTA92LT1G is currently information not available in the provided data, so teams should verify current production status directly with ON Semiconductor or authorized channels. RoHS compliance information is also not available here and should be confirmed using official manufacturer compliance documentation before release to production.
