Categories Circuit Protection
Manufacturer ON Semiconductor
Packaging Bulk
Part Status Obsolete(EOL)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 23V (Maximum)
Minimum Breakdown Voltage 24V
Power - Peak Pulse 2500W (2.5kW)
Power Line Protection No
Applications General
Operating Temperature Range -65°C ~ 175°C (TJ)
Mounting Style Through Hole
Package Button, Axial
Manufacturer Package Microde Button
Win Source Part Number 1226727-MR2520L
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name MR2520L
Introduction Date November 21, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian MR2520L CAD Model

Description

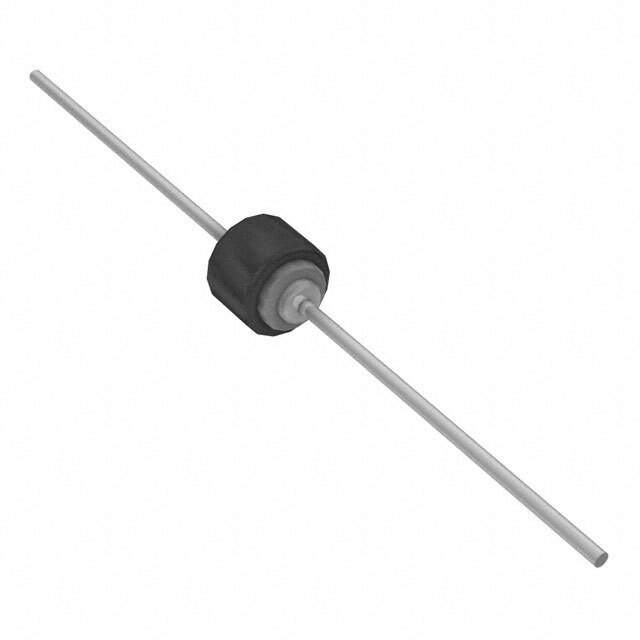

ON Semiconductor MR2520L - Robust Rectifier Diode

The MR2520L is a high-performance rectifier diode from ON Semiconductor, renowned for its robustness and efficiency in a variety of applications. This device is specifically designed to offer superior protection against reverse voltage spikes and surges, making it an ideal choice for power supply designs that require a high level of reliability and durability.

Product Features:

  • High Surge Capability: The MR2520L can withstand high surge currents, ensuring that it can handle the toughest conditions in power circuits without failing.
  • Reverse Voltage Protection: With a maximum repetitive reverse voltage (V<sub>RRM) of 200V, this diode provides ample protection against reverse voltage spikes that can occur during the switching of inductive loads.
  • High Reliability: ON Semiconductor's commitment to quality means that the MR2520L is designed for a long operational life and consistent performance, even in challenging environments.
  • Low Forward Voltage Drop: The diode's low forward voltage drop (V<sub>F) ensures high efficiency, which is critical for reducing power loss and improving overall system performance.
  • Compact Package: Encased in a small and lightweight package, the MR2520L is suitable for compact circuit designs where space is at a premium.

Applications:

The MR2520L is versatile and can be used across a wide range of applications, including:

  • Switching power supplies
  • Free-wheeling diodes
  • Reverse battery protection
  • DC-DC converters
  • Automotive applications

With its robust construction and superior electrical characteristics, the MR2520L from ON Semiconductor is an excellent choice for designers looking to enhance the reliability and efficiency of their power management systems. Whether you're dealing with consumer electronics, automotive, or industrial applications, the MR2520L provides the protection and performance needed to maintain smooth operation under harsh conditions.
