Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Series SWITCHMODE™
Package Tube
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 100 ns
Current - Reverse Leakage @ Vr 25 µA @ 800 V
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220-2
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number MUR88
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 645908-MUR880E
Ultra Librarian 3D Model Ultra Librarian MUR880E CAD Model

Description

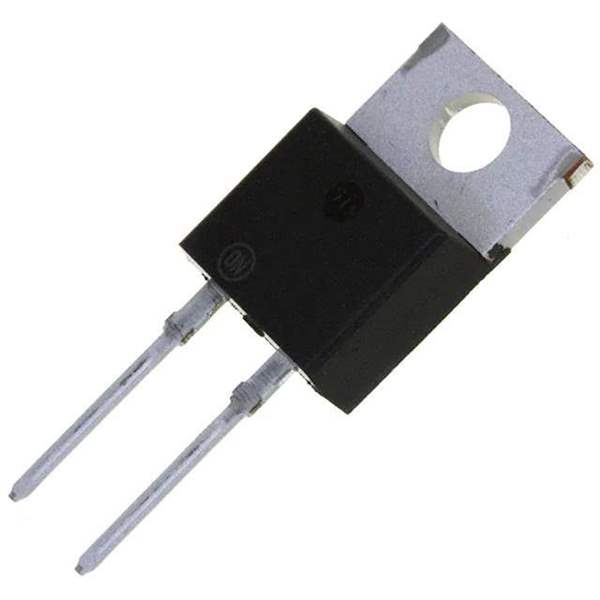

ON Semiconductor MUR880E Ultra Fast Rectifier

The MUR880E from ON Semiconductor is a high-performance ultra-fast rectifier designed to meet the stringent requirements of today's power electronics industry. This device is well-suited for applications requiring efficient and reliable high-speed switching, such as power supplies, converters, and freewheeling diodes in a variety of electronic devices.

Key Features

  • Peak Repetitive Reverse Voltage (VRRM): 800V, providing ample headroom for high voltage applications.
  • Average Rectified Forward Current (IF(AV)): 8A, ensuring significant current handling capability for demanding scenarios.
  • Ultra-Fast Recovery Time: Typically less than 25ns, which minimizes power loss and improves efficiency in high-frequency circuits.
  • Low Forward Voltage Drop (VF): This feature reduces power dissipation and improves overall efficiency, making the MUR880E an energy-saving choice for modern designs.
  • Reverse Recovery Time (trr): Optimized for high-speed switch-mode applications, providing reduced switching losses.
  • High Surge Current Capability: Capable of withstanding surge currents, ensuring robust performance during transient conditions.
  • Operating Junction Temperature Range: -65°C to +175°C, suitable for operation in extreme environmental conditions.

Applications

The ON Semiconductor MUR880E is versatile and can be used in a wide range of applications, including:

  • Switching power supplies
  • Power factor correction circuits
  • Automotive environment systems
  • High-frequency inverters
  • Snubber circuits

Package and Quality Assurance

The MUR880E is available in a robust axial-lead package, which ensures easy mounting and compatibility with various PCB designs. ON Semiconductor's commitment to quality is evident in the MUR880E, which is manufactured to the highest standards to ensure reliability and performance consistency. The device is also RoHS compliant, adhering to environmental regulations and promoting sustainability in electronic component design.
