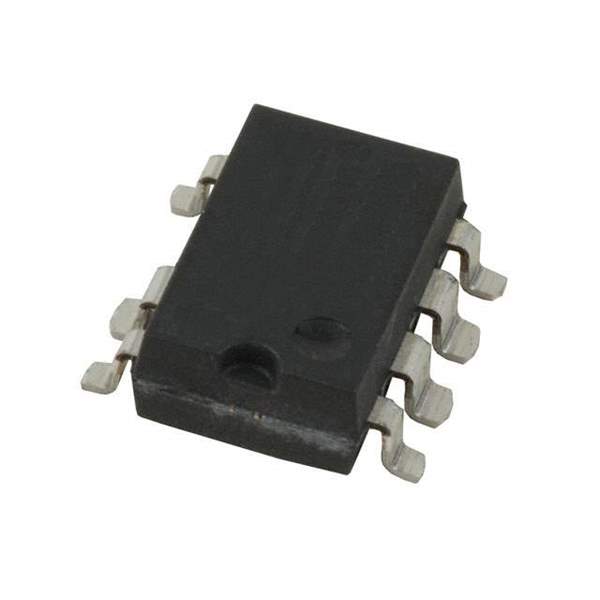

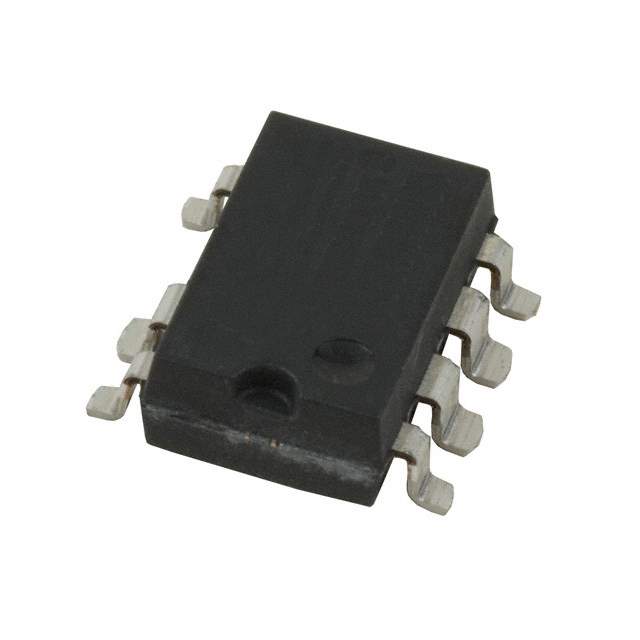

The NCP1012APL065R2G from ON Semiconductor represents a high-performance, integrated solution for power supply applications. This self-supplied monolithic switching regulator integrates a fixed-frequency current mode controller with a 700 V MOSFET. It is designed for off-line converters and is especially suited for use in low-power applications such as standby power supplies, auxiliary supplies, or any application requiring a compact, high-efficiency power solution.

Key Features

• Integrated 700 V MOSFET: The inclusion of a high-voltage MOSFET allows this device to handle a wide range of input voltages and provides robustness against line surges.
• Current Mode Control: This feature ensures tight output regulation over a variety of input voltages and output loads.
• Frequency Operation: The NCP1012APL065R2G operates at 65 kHz, which provides an optimal balance between efficiency and component size, reducing external component count and overall design complexity.
• Auto-Recovery Overload Protection: The device incorporates protections against overloads, enhancing system reliability and longevity.
• Low Standby Power: Designed to minimize power consumption during standby mode, making it ideal for energy-saving applications.
• Under-Voltage Lockout (UVLO): This feature ensures the device only operates when the input voltage is within the specified range, protecting the circuit from low-voltage conditions.

Applications

The NCP1012APL065R2G is versatile and can be used in a variety of applications, including:

• AC-DC Adapters for Cell Phones and PDAs
• Auxiliary Supplies for Appliances
• Standby and Auxiliary Power Supplies
• Offline Battery Chargers

Environmental and Quality Certifications

ON Semiconductor is committed to environmental stewardship and product quality. The NCP1012APL065R2G is compliant with RoHS (Restriction of Hazardous Substances) and is manufactured in facilities that are certified for ISO 9001:2015 quality management systems, ensuring a reliable and environmentally friendly product.

With its robust design, energy efficiency, and versatility, the NCP1012APL065R2G is an excellent choice for designers looking to create compact, reliable, and cost-effective power supply solutions.
