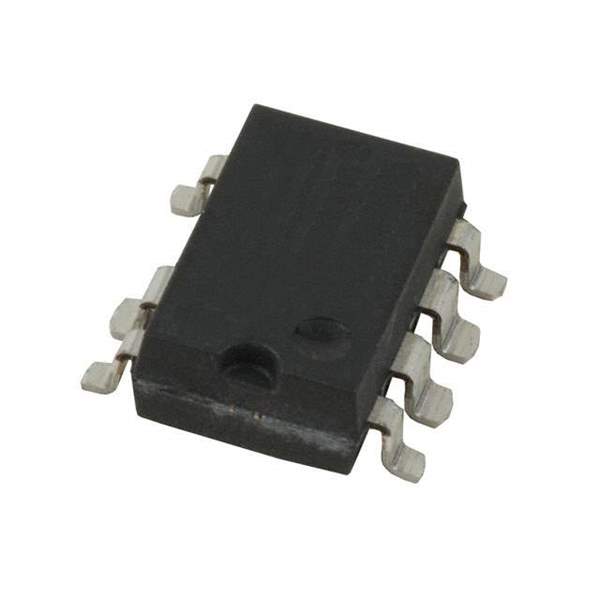

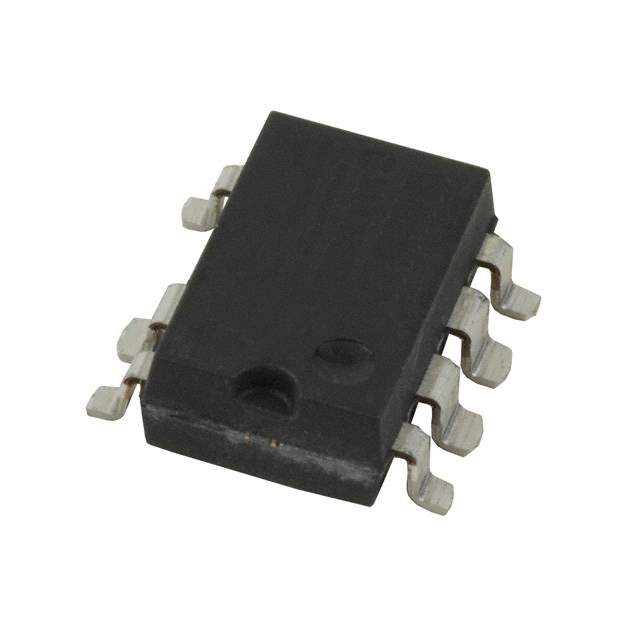

ON Semiconductor NCP1014APL065R2G

The NCP1014APL065R2G from ON Semiconductor is a highly integrated solution for Switch Mode Power Supply (SMPS) applications requiring a low power consumption and a compact footprint. This self-contained power switch incorporates a fixed-frequency current mode controller and a 65 kHz switching MOSFET, making it an ideal choice for off-line converters in a variety of devices.

Key Features

• Integrated Design: Combines a fixed-frequency current mode controller with a 65 kHz power MOSFET.
• High-Efficiency: Designed for high efficiency and low standby power, suitable for meeting energy-saving standards.
• Adjustable Overpower Compensation: Allows fine-tuning of power limit to suit different applications.
• Frequency Jittering: Reduces EMI radiation and simplifies the design of the EMI filter.
• Internal Protections: Features include undervoltage lockout, short-circuit protection, and overtemperature protection for enhanced safety and reliability.
• Low Startup Current: Minimizes standby power consumption.

Applications

• AC-DC Adapters for Cell Phones, PDAs, MP3 Players, etc.
• Standby and Auxiliary Power Supplies
• Chargers for Portable Devices
• Small Appliances and Utility Meters

Product Specifications

Parameter Value Part Number NCP1014APL065R2G Manufacturer ON Semiconductor Switching Frequency 65 kHz Output Power Dependent on external components Package / Case PDIP-7

The NCP1014APL065R2G provides a compact, efficient, and reliable solution for power supply designs, simplifying the design process and accelerating the time to market for a wide range of electronic products.
