ON Semiconductor NCP1216AP100G PWM Current-Mode Controller

The NCP1216AP100G is a versatile PWM current-mode controller designed by ON Semiconductor to cater to a wide range of power conversion applications. This highly integrated IC is well-suited for AC-DC adapters, offline battery chargers, and auxiliary/supplementary power supplies. Its innovative design facilitates the creation of cost-effective and energy-efficient power solutions.

At the heart of the NCP1216AP100G is its ability to adapt to various power requirements due to its adjustable switching frequency, which goes up to 100kHz. This feature allows designers to fine-tune their power supplies for optimal performance and efficiency. Additionally, this controller supports a quasi-resonant operation mode, which reduces electromagnetic interference (EMI) and enhances overall efficiency by minimizing switching losses.

The NCP1216AP100G integrates numerous protection features to ensure the longevity and safety of the end application. These include an adjustable overcurrent protection (OCP), which guards against excessive currents that could damage components, and an overvoltage protection (OVP) that prevents voltage spikes from compromising the power supply integrity. Furthermore, the device incorporates a brown-out detection feature, which ensures stable operation under varying input voltage conditions.

One of the key benefits of the NCP1216AP100G is its built-in high-voltage startup circuit, which allows the controller to quickly power up even under stressful conditions. This feature significantly enhances the reliability and performance of the power supply during initial power-on stages. Additionally, the controller offers a no-load standby power option to maintain energy efficiency when the connected device is in standby or off mode, making it an excellent choice for applications that require compliance with energy-saving regulations.

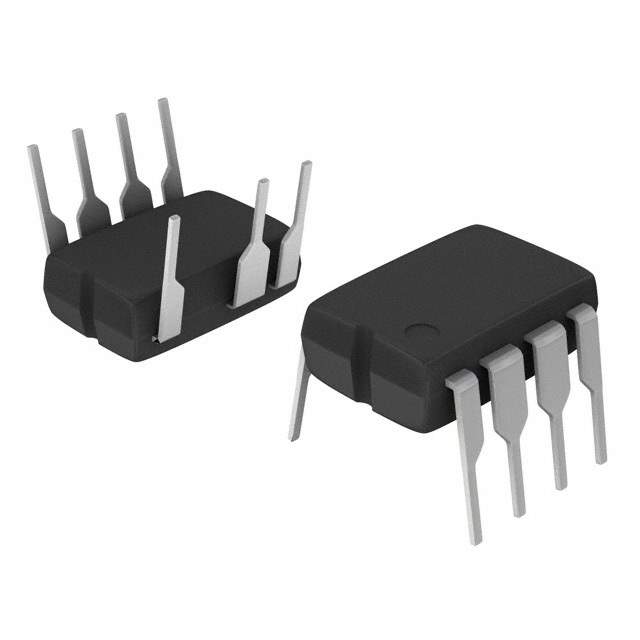

The NCP1216AP100G is available in a compact PDIP-7 package, which makes it easy to integrate into various PCB layouts without consuming excessive board space. ON Semiconductor's commitment to quality ensures that this controller meets the stringent requirements of modern power supply designs, making it a reliable and cost-effective choice for designers looking to create sophisticated power solutions.
