ON Semiconductor NCP3230MNTXG High-Efficiency Integrated Power Solution

The NCP3230MNTXG is a state-of-the-art power management integrated circuit (PMIC) designed by ON Semiconductor, a leading provider of semiconductor-based solutions. This high-performance, highly efficient device is tailored for applications that demand robust power delivery and energy efficiency, such as computing, networking, and telecommunications equipment.

Key Features

• High-Efficiency Operation: The NCP3230MNTXG offers a high-efficiency buck converter capable of delivering a continuous current of up to 30A, ensuring that even the most power-hungry components receive a stable supply of electricity.
• Wide Input Voltage Range: With an input voltage range of 4.5V to 18V, this PMIC is versatile enough to handle a variety of power sources, making it suitable for a broad range of applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 5.5V, allowing for fine-tuning to meet the specific needs of the connected load.
• Integrated MOSFETs: The inclusion of high- and low-side MOSFETs simplifies the design and reduces external component count, which can lead to a more compact and cost-effective overall design.
• Protection Features: The device includes a comprehensive set of protection features such as over-current, over-voltage, under-voltage, and thermal shutdown to ensure reliable operation under adverse conditions.

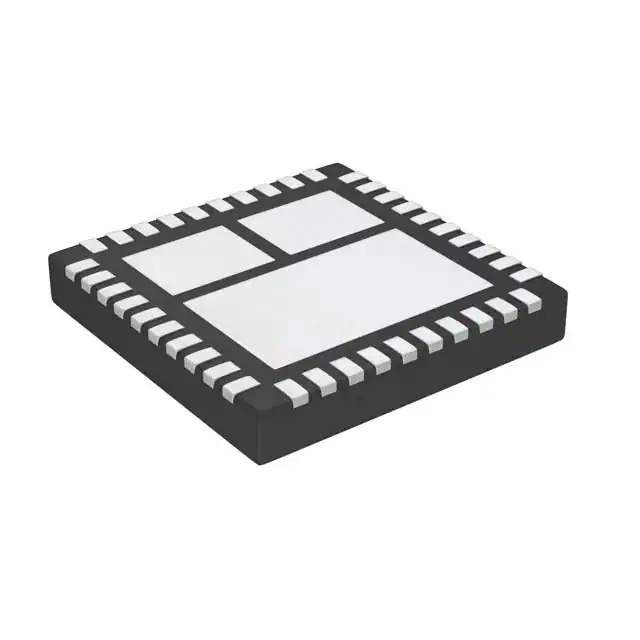

• Enhanced Thermal Performance: The NCP3230MNTXG is available in a thermally enhanced 35-pin QFN package, which aids in heat dissipation and helps maintain performance even under high load conditions.

Applications

The NCP3230MNTXG is ideal for a wide range of applications, including:

• High-Performance Computing Systems
• Networking and Telecommunications Equipment
• Graphics Cards and Gaming Consoles
• Industrial and Medical Equipment
• Server and Storage Systems

Conclusion

ON Semiconductor's NCP3230MNTXG is a powerful and flexible power solution that delivers high efficiency and reliability. It meets the stringent requirements of modern electronic systems, helping designers to achieve more energy-efficient and compact designs. The integration of advanced features and protections ensures that the NCP3230MNTXG provides a safe and robust power supply for a multitude of demanding applications.
