The ON Semiconductor NLV74VHC595DTR2G is a high-performance, 8-bit shift register with output latches and designed to provide efficient data transfer to and from input to output. This integrated circuit is a part of the VHC family, which stands for Very High-Speed CMOS technology. It is an essential component in digital systems where it is necessary to convert serial data to parallel form, making it highly suitable for a wide range of applications, including data processing, communication systems, and control systems.

Key Features

• High-Speed Performance: The device operates at a high speed which is suitable for applications that require quick data processing and throughput.
• Low Power Consumption: It is designed to have a low power dissipation, making it ideal for use in power-sensitive applications.
• Shift Register and Latch: Features an 8-bit serial-in, parallel-out shift register with a storage latch that allows for the serial to parallel data conversion.
• Wide Operating Voltage Range: The device can operate over a wide voltage range from 2V to 5.5V, providing a flexible power supply option for different environments.
• Output Drive Capability: The NLV74VHC595DTR2G can drive up to 8mA at 5V, allowing it to directly drive LEDs and other low-power output devices.
• Enhanced Circuit Protection: It includes circuitry that protects against the damage from high static voltages or electric fields.

Applications

• LED Displays
• Serial-to-Parallel Data Conversion
• Data Storage
• Instrumentation
• Automotive Systems
• Communication Systems

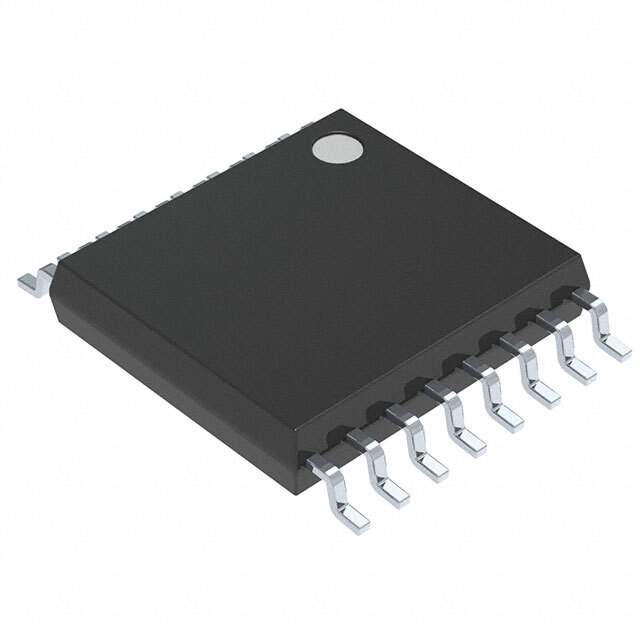

The ON Semiconductor NLV74VHC595DTR2G is supplied in a TSSOP-16 package, which is compact and suitable for space-constrained applications. Its high-speed performance, combined with its robustness and versatility, makes it an excellent choice for designers looking for a reliable shift register solution.
