Products specifications

Categories Integrated Circuits (ICs)

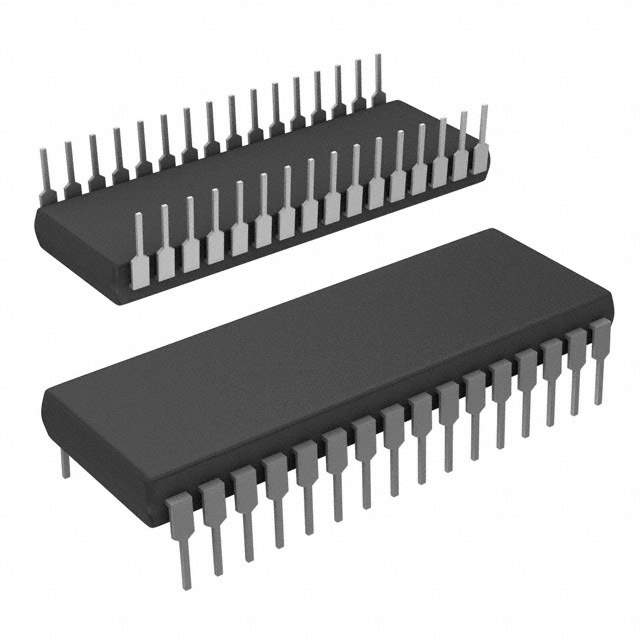

Features EPROM - UV Memory IC 1Mb (128K x 8) Parallel 120 ns 32-CDIP
Manufacturer ON Semiconductor
Package Tube
Part Status Obsolete
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Through Hole
Package 32-CDIP (0.685", 17.40mm) Window
Case / Package 32-CDIP
Family Name NM27C010
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 3A991B1B1
HTSUS 8542.32.0061
Quantity per package 11
Popularity High
Supply and Demand Status Balance
Win Source Part Number 929284-NM27C010QE120
Ultra Librarian 3D Model Ultra Librarian NM27C010QE120 CAD Model

Description

ON Semiconductor NM27C010QE120 Overview

The ON Semiconductor NM27C010QE120 is a high-performance 1 Megabit (128K x 8) CMOS EPROM (Erasable Programmable Read-Only Memory) designed to deliver both high speed and high density in a compact package. This memory device is well-suited for applications that require data or program storage that can be updated or changed during the product's lifecycle.

Key Features

  • High Density Storage: The NM27C010QE120 provides a substantial amount of storage with its 1 Megabit capacity, making it ideal for storing large programs or data sets.
  • Fast Access Time: With an access time of 120 ns, this EPROM offers fast data retrieval, enhancing the performance of the systems it is integrated into.
  • CMOS Technology: Utilizing CMOS technology, the device boasts low power consumption, which is crucial for battery-powered or energy-sensitive applications.
  • Programmability: The device can be electrically programmed on a byte-by-byte basis, providing flexibility for data updates without the need for external programming devices.
  • UV Erasable: The NM27C010QE120 can be erased with ultraviolet light, allowing it to be reused and reprogrammed multiple times, which is beneficial for prototyping and testing phases.
  • Extended Temperature Range: It is designed to operate over an extended temperature range, making it suitable for use in environments with extreme temperature conditions.
  • Industry-Standard Package: The device is available in a 32-pin PDIP package, ensuring compatibility with standard sockets and ease of integration into existing designs.

Applications

The NM27C010QE120 is versatile and can be used across various industries and applications. Its robustness and reliability make it a good fit for:

  • Automotive systems
  • Industrial control systems
  • Telecommunication infrastructure
  • Medical equipment
  • Consumer electronics

In summary, the ON Semiconductor NM27C010QE120 is a reliable and flexible memory solution that offers the advantages of high density, low power consumption, and ease of programming, making it a top choice for designers who require a dependable non-volatile memory for their applications.
