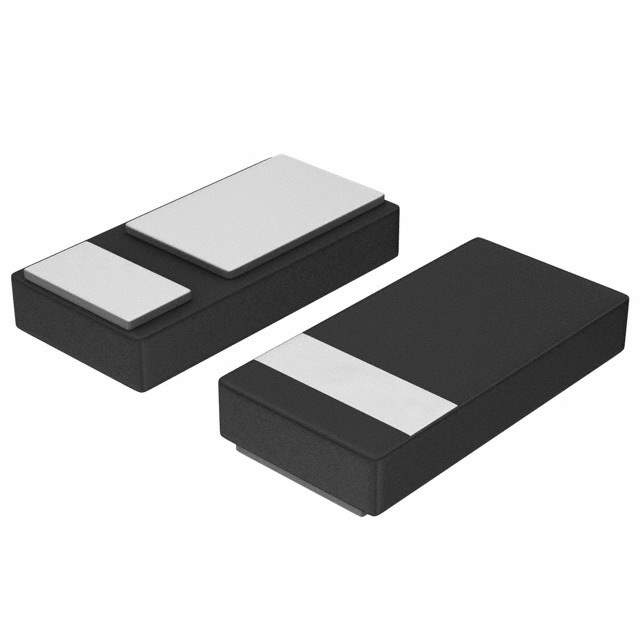

The NSR20F30NXT5G is a cutting-edge semiconductor device from ON Semiconductor, a renowned leader in energy-efficient innovations. This product stands out as a Schottky Barrier Diode, designed for applications that demand high efficiency and reliability. It is a perfect fit for modern electronic systems where power management is critical.

Key Features

• Low Forward Voltage Drop: The diode features a low forward voltage drop, which enhances system efficiency by minimizing power loss during operation.
• High Current Capacity: With a 2.0 Ampere continuous forward current, the NSR20F30NXT5G is capable of handling high current applications with ease.
• Power Dissipation: It has a power dissipation of 1.25 Watts, which ensures that the device can manage power effectively without overheating.
• High Junction Temperature: The device can operate at a high junction temperature of 125°C, making it suitable for high-temperature environments.
• Low Leakage Current: The NSR20F30NXT5G is engineered to have a low leakage current, which is crucial for maintaining energy efficiency and reducing power consumption when the diode is in the off state.

Applications

The NSR20F30NXT5G is versatile and can be used in various applications, including:

• Power supply management in portable devices
• DC-DC converters
• Load switching applications
• Reverse battery protection circuits
• Automotive applications where high-temperature operation is required

Package and Compliance

The device comes in a compact SOD-123 package, which is suitable for surface-mount technology (SMT) and helps in saving valuable board space. Additionally, the NSR20F30NXT5G is compliant with RoHS directives, indicating that it is manufactured with environmentally friendly materials and processes.

Conclusion

In conclusion, the ON Semiconductor NSR20F30NXT5G is a robust and efficient solution for modern electronic applications that require high-performance diodes. Its low forward voltage drop, high current capacity, and ability to operate at high temperatures make it an excellent choice for designers looking to optimize their power management systems.
