The ON Semiconductor RURG3060-F085 is a robust and highly efficient ultrafast diode designed for high-performance power conversion applications. This diode is part of ON Semiconductor's esteemed family of power management and conversion solutions, catering to a wide range of industrial, automotive, and consumer electronics markets.

Key Features

• High Reverse Voltage Capability: The RURG3060-F085 boasts a reverse voltage of 600V, making it suitable for high-voltage applications.
• Ultrafast Reverse Recovery Time: With a reverse recovery time (trr) as low as 35ns, this diode ensures minimal energy loss and improved efficiency in high-frequency circuits.
• Low Forward Voltage Drop: The device features a low forward voltage drop, which contributes to reduced power dissipation and improved thermal performance.
• High Surge Current Capability: It can withstand high surge currents, ensuring reliability in applications prone to transient conditions.

Applications

The RURG3060-F085 is ideal for a variety of applications, including:

• Power supply management in servers and telecom equipment
• Power factor correction (PFC) circuits
• Switch-mode power supplies (SMPS)
• Motor drives and inverters
• Automotive charging systems
• Renewable energy inverters, such as solar and wind power systems

Package and Quality

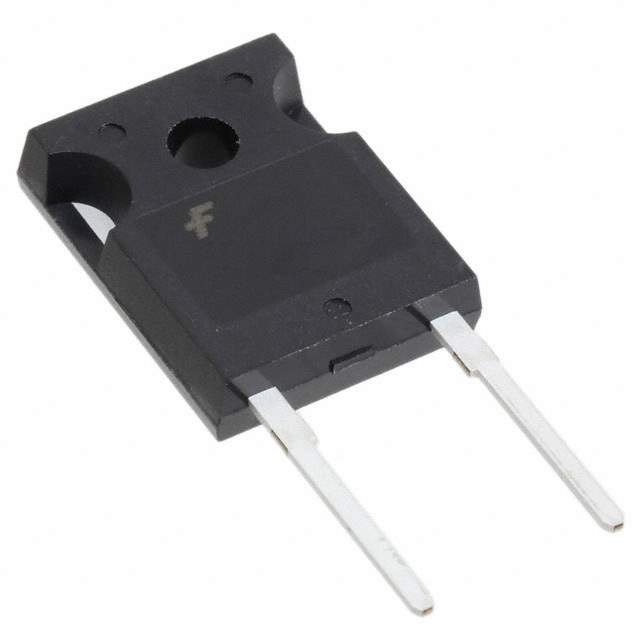

The RURG3060-F085 is offered in a TO-247 package, known for its high power dissipation and ease of mounting on a heatsink. It meets the stringent quality standards set by ON Semiconductor, ensuring high reliability and performance consistency across various environmental conditions.

Conclusion

The ON Semiconductor RURG3060-F085 ultrafast diode is an excellent choice for designers looking to enhance efficiency and reliability in their power conversion systems. Its combination of high-voltage capability, ultrafast recovery time, and robust surge handling makes it a versatile component for modern electronic applications.
