The ON Semiconductor SA24ARLG is a state-of-the-art voltage suppressor designed to protect sensitive electronic equipment from voltage spikes and transients. This component is a part of the comprehensive line of transient voltage suppressors (TVS) that offer a high level of surge protection in a compact, surface-mount package.

Key Features

• Peak Pulse Power: The SA24ARLG is capable of handling 500W peak pulse power dissipation for a 10/1000μs waveform, ensuring reliable protection against high energy transients.
• Stand-off Voltage: It is designed with a stand-off voltage of 24V, which makes it suitable for a range of applications, including protection of voltage-sensitive components from higher voltage transients.
• Low Leakage Current: Exhibiting a low leakage current under normal operation, the SA24ARLG helps in maintaining the energy efficiency of the application it is used in.
• Fast Response Time: With its fast response time to transient events, this TVS diode can quickly clamp the excess voltage, minimizing the risk to the downstream components.
• Operating Temperature: The device can operate over a wide temperature range from -55°C to +150°C, offering reliable performance in various environmental conditions.

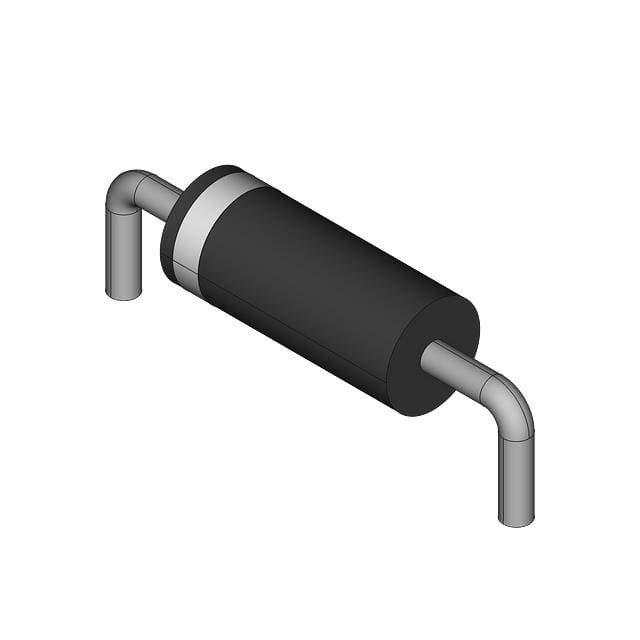

• Package: The SA24ARLG comes in an unidirectional axial-lead package, which is well-suited for through-hole mounting, providing a robust mechanical and electrical connection.

Applications

This versatile component is widely used across different sectors, including:

• Industrial systems
• Consumer electronics
• Automotive applications
• Telecommunication circuits
• Power supply units

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the SA24ARLG is no exception. It is manufactured to meet high industry standards, ensuring that it provides reliable protection for your electronic devices. With its robust design and superior performance, the SA24ARLG is an excellent choice for designers looking for a dependable voltage suppression solution.
