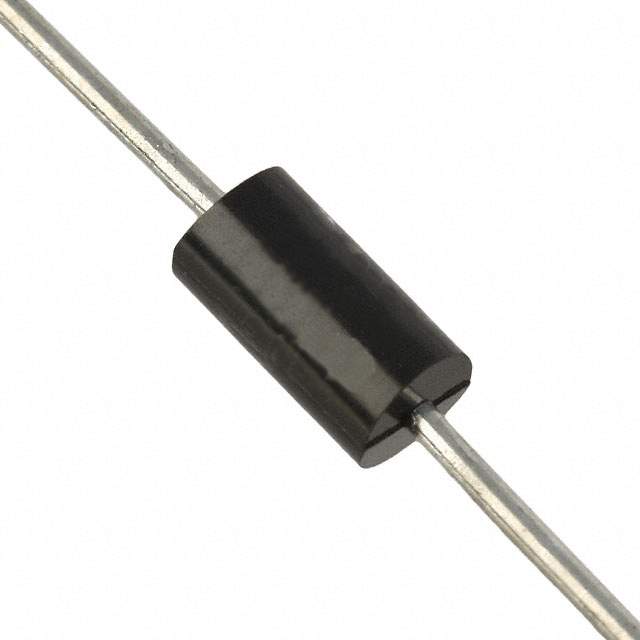

The SA6V0A from ON Semiconductor is a robust transient voltage suppressor (TVS) diode designed to protect sensitive electronics from voltage spikes and transients induced by lightning and other transient voltage events. This component is specifically engineered to safeguard voltage-sensitive devices by clamping unwanted high-voltage surges to a safe threshold, preventing potential damage to the circuitry.

Key Features

• Peak Pulse Power: The SA6V0A can handle 600W of peak pulse power dissipation for an 10/1000µs waveform, ensuring reliable protection against high energy transients.
• Breakdown Voltage: With a minimum breakdown voltage of 6.67V and a maximum of 7.37V, it offers precise voltage clamping characteristics suitable for a range of applications.
• Low Leakage Current: It has a low leakage current of less than 1µA, which helps to maintain energy efficiency in the electronic system it is protecting.
• Fast Response Time: The SA6V0A boasts an exceptionally fast response time to transient events, typically less than 1 picosecond from 0V to BV min, ensuring swift protection for sensitive circuit components.
• Operating Temperature: This device operates effectively over a broad temperature range from -55°C to +150°C, making it suitable for harsh environments.

Applications

The SA6V0A is versatile and can be used in a variety of applications, including:

• Portable Electronics
• Power Supply Protection
• Automotive Electronics
• Industrial Systems
• Telecommunication Devices

Quality and Reliability

ON Semiconductor is committed to providing high-quality products. The SA6V0A is no exception, offering exceptional reliability. It is compliant with the ISO 9001 Quality Management System, ensuring consistent product quality and performance. Additionally, it meets the IEC-61000-4-2 standard for Electrostatic Discharge (ESD) immunity, making it a reliable choice for protecting against ESD-related issues.
