The ON Semiconductor STPR2020CT is a high-performance ultra-fast recovery rectifier designed to meet the demanding requirements of modern electronic applications. This state-of-the-art component is ideal for use in power supplies, inverters, converters, freewheeling diodes, and other power switching applications. The STPR2020CT offers a combination of low power loss, high efficiency, and high surge capability, making it a reliable choice for high-frequency operations.

Key Features

• Voltage Ratings: The STPR2020CT has a repetitive peak reverse voltage (VRRM) of 200V, which ensures it can handle high voltage applications with ease.
• Current Capacity: With an average forward rectified current (IF(AV)) of 20A at TA = 100°C, this rectifier can support applications requiring a high current throughput.
• Ultra-Fast Recovery Time: The device features an extremely fast reverse recovery time (trr) of 35ns, minimizing power loss and improving efficiency in fast-switching applications.
• Low Forward Voltage Drop: A low forward voltage drop (VF) reduces power dissipation and improves overall system efficiency, making it suitable for high-efficiency power designs.
• High Surge Capability: Its high surge current capability ensures reliability under transient overloads, protecting other components in the circuit.

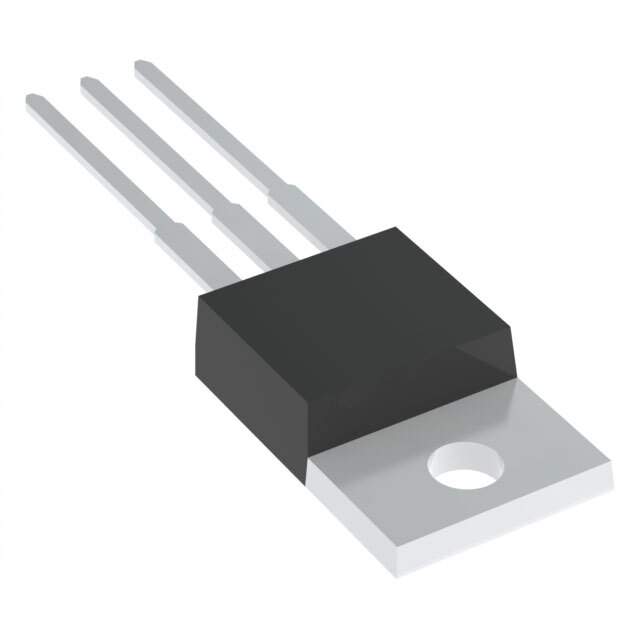

• Package: Packaged in a TO-220AB, the STPR2020CT is designed for easy installation and robust performance in a wide range of operating environments.

Applications

The versatility of the STPR2020CT allows it to be used in a broad array of applications. It is particularly well-suited for:

• Switch-mode power supplies (SMPS)
• Power factor correction circuits (PFC)
• DC-DC converters
• Automotive environments requiring high reliability
• LED lighting applications

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the STPR2020CT is no exception. It is manufactured to the highest standards to ensure consistent performance and durability over its lifespan. Whether for industrial, commercial, or automotive applications, the STPR2020CT from ON Semiconductor is an excellent choice for designers looking for a rectifier that will deliver both efficiency and reliability.
