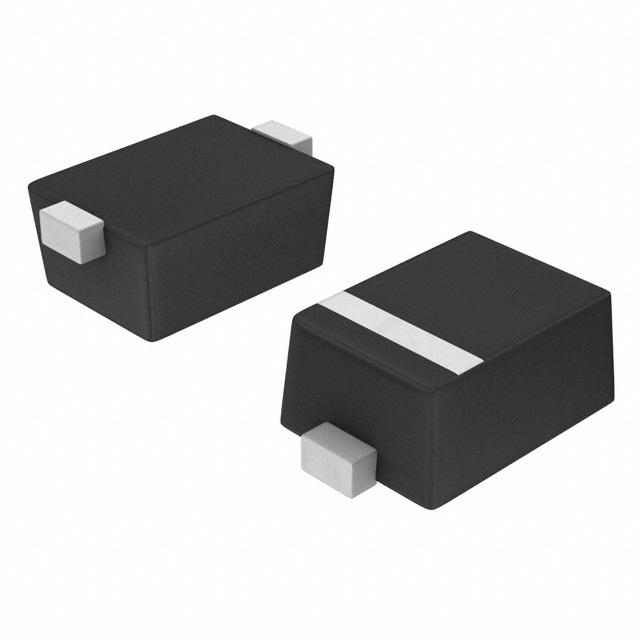

ON Semiconductor SZESD9B5.0ST5G - ESD Protection Diode

The SZESD9B5.0ST5G from ON Semiconductor is a robust ESD protection diode designed to shield sensitive electronic components from electrostatic discharge (ESD) and other transient voltage events. This compact and highly efficient device is an essential component for modern electronics, where it helps to extend product life and reliability by safeguarding against the damaging effects of sudden voltage spikes.

Key Features

• ESD Protection: The SZESD9B5.0ST5G offers excellent ESD protection, capable of withstanding ESD events exceeding the IEC61000-4-2 Level 4 standard. It can absorb repetitive ESD strikes at ±30kV (air discharge) and ±30kV (contact discharge), providing robust defense for sensitive circuitry.
• Low Clamping Voltage: The device features a low dynamic resistance and clamping voltage, ensuring that any excess voltage is quickly and effectively suppressed, minimizing stress on the protected component.
• Fast Response Time: With its ultra-fast response time, the SZESD9B5.0ST5G reacts to overvoltage events swiftly, offering immediate protection from transient voltage spikes.
• Small Package Size: The diode comes in a small SOD-523 package, making it ideal for space-constrained applications. Its compact size does not compromise its performance, ensuring comprehensive protection without taking up significant board space.

Applications

The SZESD9B5.0ST5G is suitable for a broad range of applications where ESD protection is critical. This includes:

• Portable electronics like smartphones, tablets, and laptops
• Communication systems such as network ports and wireless equipment
• Consumer electronics, including TVs, cameras, and gaming consoles
• Medical devices that require stringent protection standards
• Industrial controls and automation systems

In conclusion, the ON Semiconductor SZESD9B5.0ST5G is a versatile ESD protection solution that offers high-performance features in a small package. Its ability to defend against severe ESD events and other transient voltages makes it an essential component for protecting sensitive electronics across a multitude of applications.
