ON Semiconductor SZNUP4016P5T5G – A Robust ESD Protection Solution

The SZNUP4016P5T5G from ON Semiconductor is a cutting-edge ESD protection device designed to safeguard sensitive electronic components against electrostatic discharge (ESD) and other transient voltage events. This component is a crucial addition to any circuit where ESD protection is a concern, particularly in applications that require high reliability and robust protection in a compact form factor.

Key Features

• Low Clamping Voltage: The SZNUP4016P5T5G offers a low clamping voltage, ensuring that any transient voltage spikes are effectively suppressed, protecting the downstream circuitry from potential damage.
• Fast Response Time: With its quick response to ESD events, this device minimizes the risk of damage to sensitive components, ensuring quick and reliable protection when it's most needed.
• Low Leakage Current: The low leakage current characteristic of this ESD protection diode ensures minimal power loss when the device is in standby mode, making it an energy-efficient choice for modern electronics.
• High Surge Capability: Built to withstand high surge events, the SZNUP4016P5T5G is capable of handling significant transient voltages, thus offering a robust shield against electrical overstress (EOS).

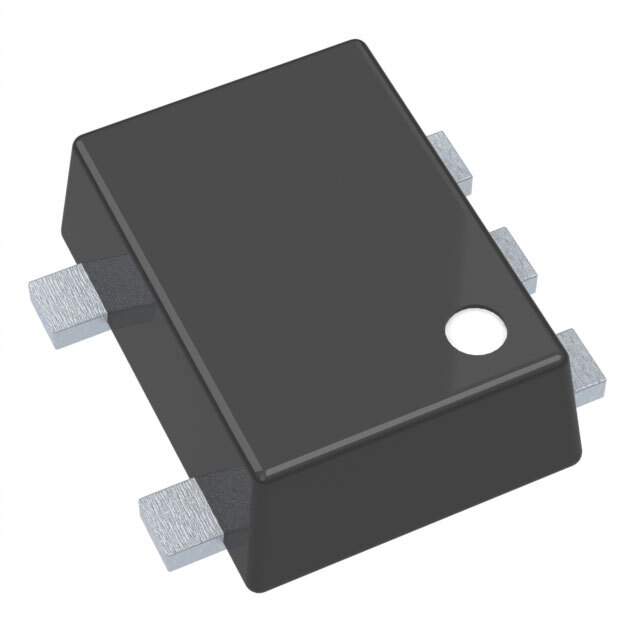

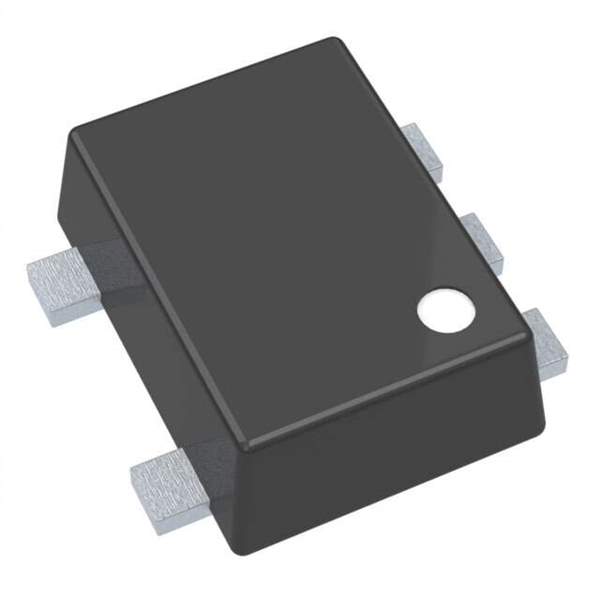

• Compact Package: Encased in a small SOT-953 package, this ESD protection diode is ideal for space-constrained applications where PCB real estate is at a premium.

Applications

The versatility of the SZNUP4016P5T5G allows it to be used in a wide array of applications, including:

• Mobile Devices
• Portable Electronics
• Data Communication Systems
• Microcontroller Input Protection
• USB Interfaces and Other High-Speed Data Lines

Reliability and Compliance

ON Semiconductor's commitment to quality ensures that the SZNUP4016P5T5G meets stringent industry standards for reliability and performance. The device is compliant with IEC 61000-4-2 ESD immunity requirements, providing peace of mind that your products are protected against common electrostatic threats in the environment.

In summary, the SZNUP4016P5T5G from ON Semiconductor is an exceptional choice for designers looking to enhance the ESD protection in their electronic systems. Its combination of low clamping voltage, fast response time, and high surge capability, all packed into a tiny footprint, makes it an invaluable component for safeguarding sensitive electronics.
