Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube
Transistor Type PNP
Current - Collector (Ic) (Maximum) 25A
Voltage - Collector Emitter Breakdown (Maximum) 60V
Vce Saturation (Maximum) @ Ib, Ic 4V @ 5A, 25A
Current - Collector Cutoff (Maximum) 1mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 15 @ 15A, 4V
Power - Max 125W
Frequency - Transition 3MHz
Operating Temperature Range -65°C ~ 150°C (TJ)
Mounting Style Through Hole
Package TO-247-3
Manufacturer Package TO-247
Win Source Part Number 1267449-TIP36AG
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name TIP36A
Introduction Date August 31, 1995
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian TIP36AG CAD Model

Description

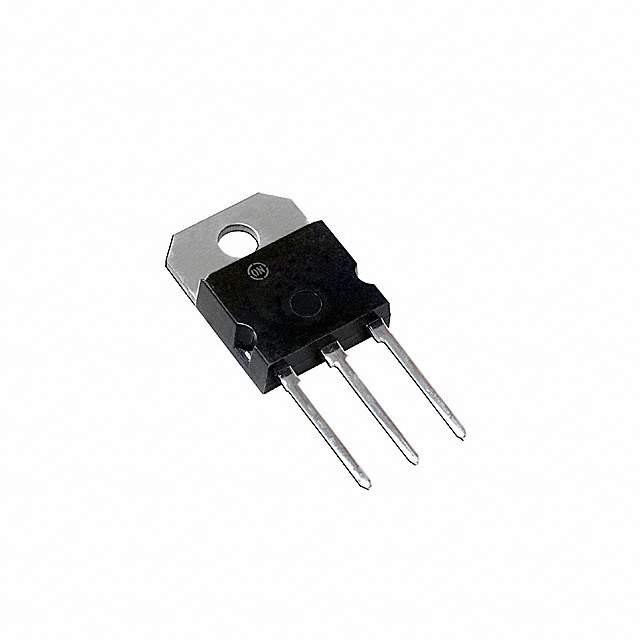

ON Semiconductor TIP36AG Power Transistor

The TIP36AG is a high-power PNP transistor manufactured by ON Semiconductor, renowned for its reliability and performance in a variety of applications. This silicon epitaxial-base planar transistor is specifically designed for power amplification and switching, which makes it an excellent choice for audio, power linear, and switching applications.

Key Features

  • High Current Capacity: The TIP36AG is capable of handling continuous collector currents up to 25A, making it suitable for high-power circuits.
  • High Voltage Tolerance: With a collector-emitter voltage (VCEO) of 25V, it can comfortably handle the demands of most power electronic circuits.
  • Complementary NPN Type: It can be paired with the TIP35AG for use in complementary symmetric configurations.
  • Low Saturation Voltage: This feature minimizes on-state losses, thereby improving efficiency in switching applications.
  • Robust Thermal Performance: The TIP36AG comes in a TO-247 package that offers excellent thermal dissipation characteristics, ensuring stable performance even under high load conditions.

Applications

The versatile nature of the TIP36AG allows it to be used in a wide range of applications, including:

  • Power linear and switching applications
  • Audio amplifiers
  • High-fidelity audio output stages
  • Regulators
  • DC-DC converters

Quality and Reliability

ON Semiconductor ensures that the TIP36AG meets stringent quality and reliability standards. Each transistor is subject to rigorous testing and quality control measures, guaranteeing performance in even the most demanding situations.

Environmental Considerations

The TIP36AG is designed with the environment in mind. It is RoHS compliant, meaning it does not contain hazardous substances such as lead, making it a safer choice for electronic equipment and for the planet.

Whether you're designing a new audio amplifier, upgrading a power supply, or developing a high-performance switching circuit, the TIP36AG from ON Semiconductor is a dependable and efficient choice that you can count on for consistent, high-quality performance.
