Same model may have multiple batches, images only for reference.

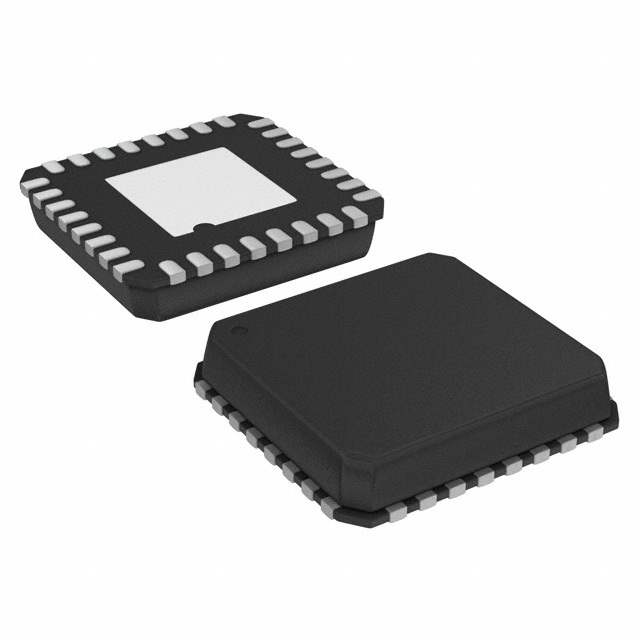

AS3940-BQFT-5K Real Image
Same model may have multiple batches, images only for reference.

AS3940-BQFT-5K

Part No AS3940-BQFT-5K
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog RF Transceiver ICs
Description IC RF TXRX ISM>1GHZ 32VFQFN / IC RF TxRx Only General ISM > 1GHz 2.4GHz 32-VFQFN Exposed Pad
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr OSRAM Opto Semiconductors Inc.
Package Tape & Reel
Product Status Obsolete
Programmable Not Verified
Type TxRx Only
RF Family/Standard General ISM > 1GHZ
Modulation FSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 1.5dBm
Sensitivity -100dBm
Serial Interfaces SDI
Voltage - Supply 2.2V ~ 3.6V
Current - Receiving 20.9mA
Current - Transmitting 21.5mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 911710-AS3940-BQFT-5K
Ultra Librarian 3D Model Ultra Librarian AS3940-BQFT-5K CAD Model

Description

The 911710-AS3940-BQFT-5K is an RF transceiver integrated circuit designed for wireless communication applications.

  • Frequency Range: 2.4GHz
  • Maximum Data Rate: 2Mbps
  • Function: Transmitting and Receiving Signals
  • Power Output: 1.5dBm
  • Sensitivity: -100dBm
  • Current Consumption (Receiving): 20.9mA
  • Current Consumption (Transmitting): 21.5mA
  • Voltage Supply Range: 2.2V to 3.6V
  • Package: 32-VFQFN exposed pad
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Moisture Sensitivity Level: 3 (168-hour)
