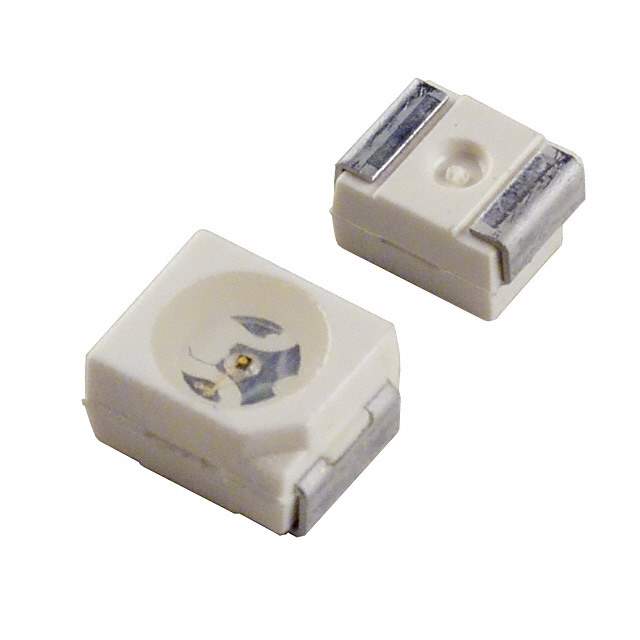

LGT67K-H2K1-24-Z Real Image
Same model may have multiple batches, images only for reference.

LGT67K-H2K1-24-Z

Part No LGT67K-H2K1-24-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description Infrared Emitter/Sensor Assemblies PLCC-2 ALGAAS LED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package PLCC
Color Green
Current 2 A
Dominant Wavelength 570 nm
Forward Current 2 mA
Forward Voltage 1.8 V
Height 2.1 mm
Illumination Color Green
Length 3.2 mm
Lens Color Colorless
Lens Style Circular, Colorless, Diffused, Round
Lens Transparency Clear
Luminous Flux 19 mlm
Luminous Intensity 9 mcd
Max Junction Temperature (Tj) 125 °C
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of LEDs 1
Number of Pins 2
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
Reverse Voltage 12 V
RoHS Compliant
Schedule B 8541402000
Test Current 2 mA
Viewing Angle 120 °
Wavelength 570 nm
Width 2.8 mm
Win Source Part Number 962099-LGT67K-H2K1-24-Z
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LGT67K-H2K1-24-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. LED component is a high-quality electronic component that is perfect for use in a wide range of applications.

  • Forward Voltage: 1.8 V
  • Forward Current: 2 mA
  • Luminous Intensity: 9 mcd
  • Luminous Flux: 19 mlm
  • Viewing Angle: 120 degrees
  • Wavelength: 570 nm
  • Mounting: Surface Mounting
  • Case/Package: PLCC
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 100 degrees Celsius
  • Lens Transparency: Clear
  • Lens Style: Circular, Colorless, Diffused, Round
  • Illumination Color: Green
