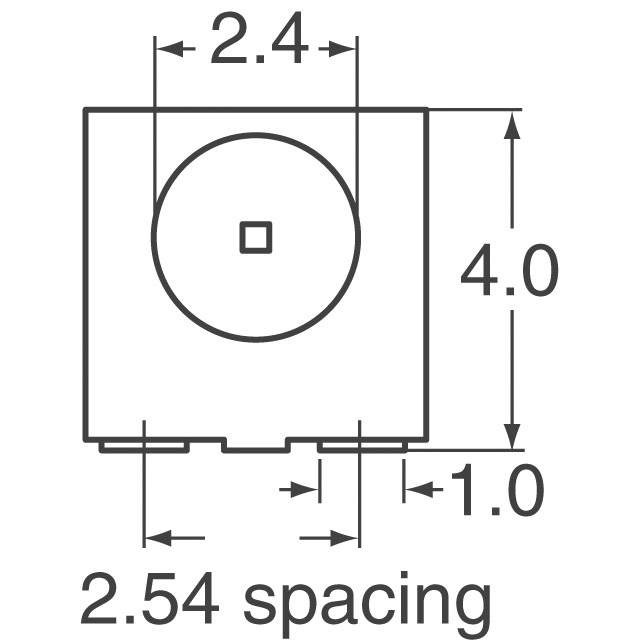

SFH 325 FA-3-Z Real Image
Same model may have multiple batches, images only for reference.

SFH 325 FA-3-Z

Part No SFH 325 FA-3-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 980NM SID VIEW PLCC / Phototransistors 980nm Side View 2-LCC (J-Lead)
Datasheet
SFH 325 FA-3-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr ams-OSRAM USA Inc.
Series SIDELED
Package Tape & Reel
Voltage - Collector Emitter Breakdown (Max) 35 V
Current - Collector (Ic) (Max) 15 mA
Current - Dark (Id) (Max) 50 nA
Wavelength 980nm
Viewing Angle 120°
Power - Max 165 mW
Mounting Type Surface Mount, Right Angle
Orientation Side View
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case 2-LCC (J-Lead)
Base Product Number SFH 325
Other Names SFH325FA-3-Z,475-3568-1,475-3568-2,SFH325FA-3,SFH325FA3,SFH325FA3Z,475-3568-6,Q65110A2482,SFH 325 FA-3,SFH 325 FA-3-Z,SFH325FA-3-Z
Standard Package 2,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1234942-SFH 325 FA-3-Z
Ultra Librarian 3D Model Ultra Librarian SFH 325 FA-3-Z CAD Model

Description

The SFH325FA-3-Z is an optical sensor phototransistor from SIDELED series.

  • Series: SIDELED
  • Maximum Power: 165mW
  • Maximum Collector Emitter Breakdown Voltage: 35V
  • Current Collector (Maximum): 15mA
  • Viewing Angle: 120 degrees
  • Operating Temperature Range: -40 to 100 degrees Celsius
  • Mounting: Surface mountable with a right-angle orientation
  • Package: 2-LCC (J-Lead)
  • REACH: Unaffected
  • ECCN: EAR99
  • Manufacturer: ams-OSRAM USA Inc.
  • Other Names: SFH325FA-3, SFH325FA3, SFH325FA3Z, Q65110A2482, and more
