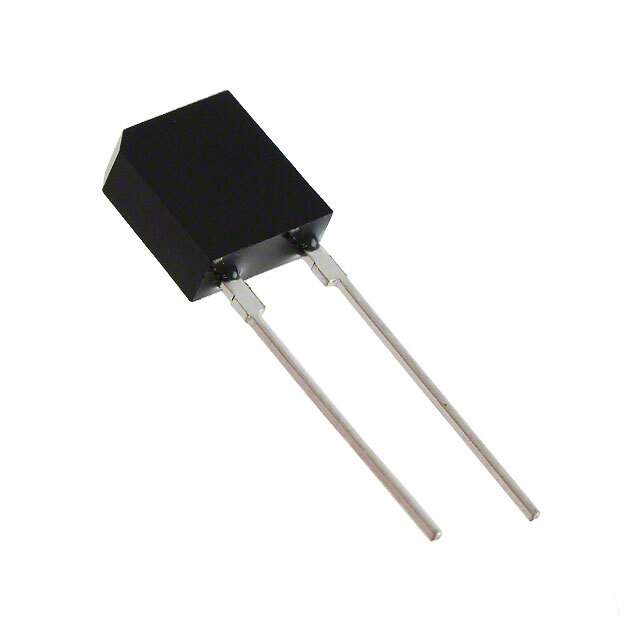

LTR-546AD Real Image
Same model may have multiple batches, images only for reference.

LTR-546AD

Part No LTR-546AD
Manufacturer Lite-On Inc.
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR PIN .100" 2UA
Datasheet
LTR-546AD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Lite-On Inc.
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Current - Dark (Id) (Max) 30nA
Wavelength 900nm
Maximum Power Dissipation 150mW
Mounting Through Hole
Orientation Side View
Temperature Range - Operating -40°C to 85°C (TA)
Dimension Radial, Side View
Win Source Part Number 072681-LTR-546AD
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian LTR-546AD CAD Model

Description

The Lite-On Inc. sensor with Win Source Part Number 072681-LTR-546AD is a through-hole component that can be mounted on a printed circuit board.

  • Viewing Angle: 900nm
  • Current-Dark (Id) (Max): 30nA
  • Maximum Power Dissipation: 150mW
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Category: Radial, Side view
  • Applications: Various electronic applications
