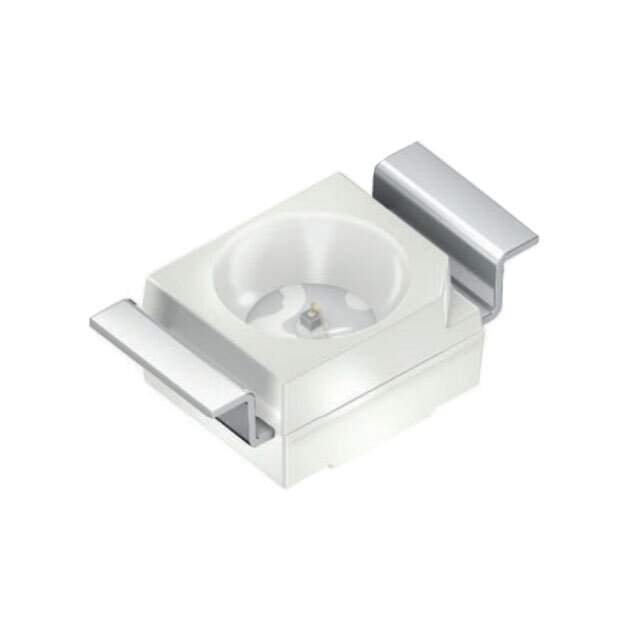

SFH 4253 R-R Real Image
Same model may have multiple batches, images only for reference.

SFH 4253 R-R

Part No SFH 4253 R-R
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Infrared, UV, Visible Emitters
Description TOPLED / Infrared (IR) Emitter 860nm 1.6V 70mA 6.3mW/sr @ 70mA 120° 2-SMD, Gull Wing
Datasheet
SFH 4253 R-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr ams-OSRAM USA Inc.
Series Power TOPLED®
Package Tape & Reel (TR)
Type Infrared (IR)
Current - DC Forward (If) (Max) 70mA
Radiant Intensity (Ie) Min @ If 6.3mW/sr @ 70mA
Wavelength 860nm
Voltage - Forward (Vf) (Typ) 1.6V
Viewing Angle 120°
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Mounting SMD (SMT)
Package / Case 2-SMD, Gull Wing
Base Product Number SFH4253
Other Names SFH4253R-R,Q65111A9685,SFH 4253 R-R
Standard Package 2,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242405-SFH 4253 R-R
Ultra Librarian 3D Model Ultra Librarian SFH 4253 R-R CAD Model

Description

The SFH 4253 R-R is an infrared LED emitter from the Power TOPLED® series by ams-OSRAM USA Inc..

  • Viewing Angle: 120°
  • Wavelength: 860nm
  • Package: 2-SMD, Gull Wing
  • Packaging: tape & reel
  • Radiant Intensity: 6.3mW/sr @ 70mA
  • Forward Voltage: 1.6V (typ)
  • Operating Temperature Range: -40°C to 100°C
  • Suitable for: optoelectronics applications
