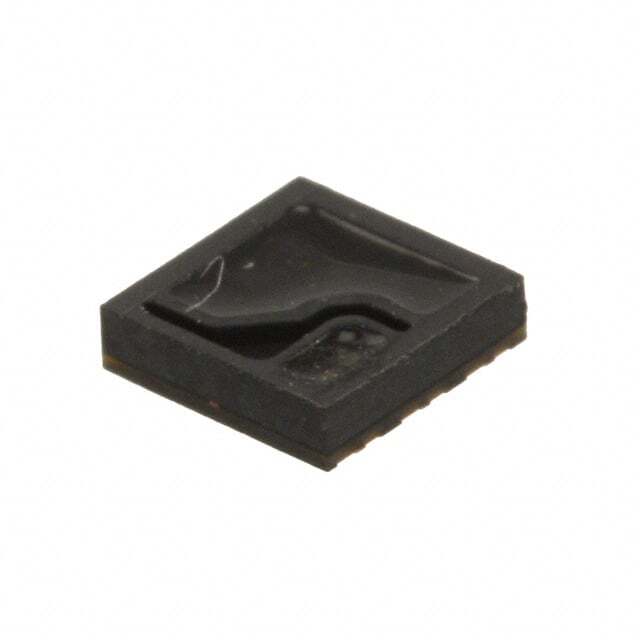

SFH 7741-Z OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

SFH 7741-Z

Part No SFH 7741-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Reflective - Logic Output
Description SENSOR OPT REFLECTIVE 30MM 6SMD / Reflective Optical Sensor 1.181" (30mm) White Paper 6-SMD Module
Datasheet
SFH 7741-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Reflective - Logic Output
Mfr ams-OSRAM USA Inc.
Package Tape & Reel
Product Status Obsolete
Sensing Distance 1.181" (30mm)
Sensing Method Reflective
Sensing Object White Paper
Output Configuration Open Drain
Sensing Light Infrared
Mounting SMD (SMT)
Voltage - Supply 2.4V ~ 3.6V
Package / Case 6-SMD Module
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.1050
Other Names Q65110A7073,475-2663-1,475-2663-2,SFH7741Z,475-2663-6
Standard Package 1,000
Win Source Part Number 1024945-SFH 7741-Z
Ultra Librarian 3D Model Ultra Librarian SFH 7741-Z CAD Model

Description

The SFH 7741-Z is a reflective optical sensor with an open drain output configuration.

  • Output Configuration: Open Drain
  • Light Source: Infrared
  • Sensing Distance: 1.181 inches (30mm)
  • Paper Type: White Paper
  • Voltage Supply Range: 2.4V to 3.6V
  • Mounting Style: 6-SMD Module
  • Package: Tape and Reel
  • Part Status: Obsolete
  • ECCN: EAR99
  • MSL Level: 4 (72 hours)
  • HTSUS Code: 8541.49.1050
  • Manufacturer: ams-OSRAM USA Inc.
