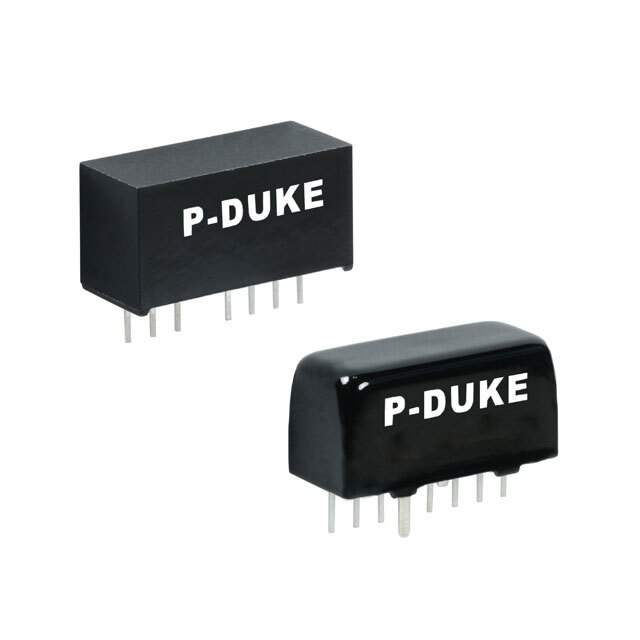

PDL09-24S12M Real Image
Same model may have multiple batches, images only for reference.

PDL09-24S12M

Part No PDL09-24S12M
Manufacturer P-DUKE Technology, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 9W / Isolated Module DC DC Converter 1 Output 12V 750mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr P-DUKE Technology, Inc.
Series PDL09 (9W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 750mA
Power (Watts) 9 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, Standby Output
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 12-SIP Module, 10 Leads
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Approval Agency CB, CE, cURus
Base Product Number PDL09
Standard Package 10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1352129-PDL09-24S12M
Ultra Librarian 3D Model Ultra Librarian PDL09-24S12M CAD Model

Description

This electronic component is an isolated module from P-DUKE Technology, Inc.

  • Win Source Part Number: 1352129-PDL09-24S12M
  • Series: PDL09 (9W)
  • Power: 9W
  • Voltage Isolation: 1.6 kV
  • Output: One
  • Maximum Output Current: 750mA
  • Voltage Input Range: 18V to 36V
  • Voltage Output: 12V
  • Efficiency: 89 percent
  • Package: Tube
  • Package Type: 12-SIP module, 10 leads
  • Category: Power Supplies - Board Mount - DC DC Converters
  • MSL Level: Not Applicable
  • HTSUS: 8504.40.9580
  • Application: ITE (Commercial)
  • Approvals: CB, CE, cURus
