Same model may have multiple batches, images only for reference.

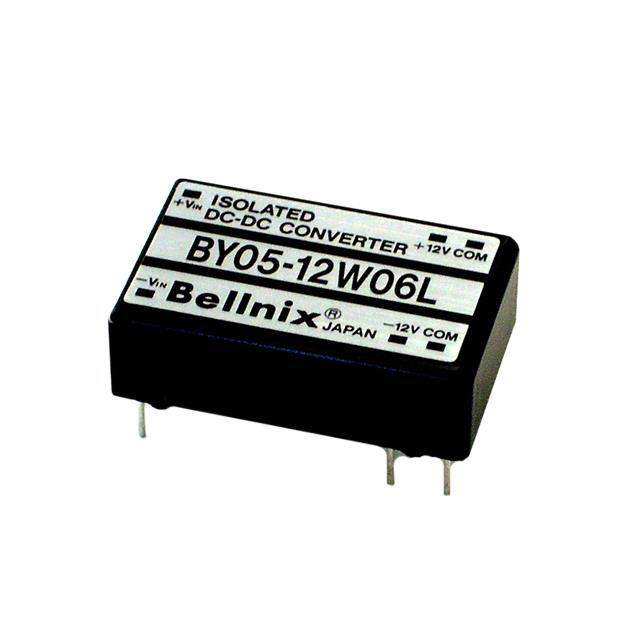

BY05-05W08L Real Image
Same model may have multiple batches, images only for reference.

BY05-05W08L

Part No BY05-05W08L
Manufacturer Bellnix Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 800MW / Isolated Module DC DC Converter 2 Output 5V -5V 80mA, 80mA 4.75V - 6V Input
Datasheet
BY05-05W08L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bellnix Co., Ltd.
Series BY-L (1.5W)
Package Bulk
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.75V
Voltage - Input (Max) 6V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 80mA, 80mA
Power (Watts) 800 mW
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -25°C ~ 71°C (With Derating)
Efficiency 45%
Mounting Type Through Hole
Package / Case 24-DIP Module, 6 Leads
Size / Dimension 1.28" L x 0.80" W x 0.41" H (32.6mm x 20.4mm x 10.3mm)
Base Product Number BY05-05
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1338681-BY05-05W08L
Ultra Librarian 3D Model Ultra Librarian BY05-05W08L CAD Model

Description

The BY-L (1.5W) is an isolated module type DC DC converter that is suitable for power supplies - board mount applications.

  • Size Dimension: 1.28" L x 0.80" W x 0.41" H (32.6mm x 20.4mm x 10.3mm)
  • Application: ITE (Commercial)
  • Outputs: Two
  • Maximum Output Current: 80mA and 80mA
  • Input Voltage: 4.75V to 6V
  • Output Voltage: 5V and -5V
  • Efficiency: 45%
  • Mounting: Through Hole
  • Package/Case: 24-DIP Module, 6 Leads
  • Manufacturer: Bellnix Co., Ltd.
