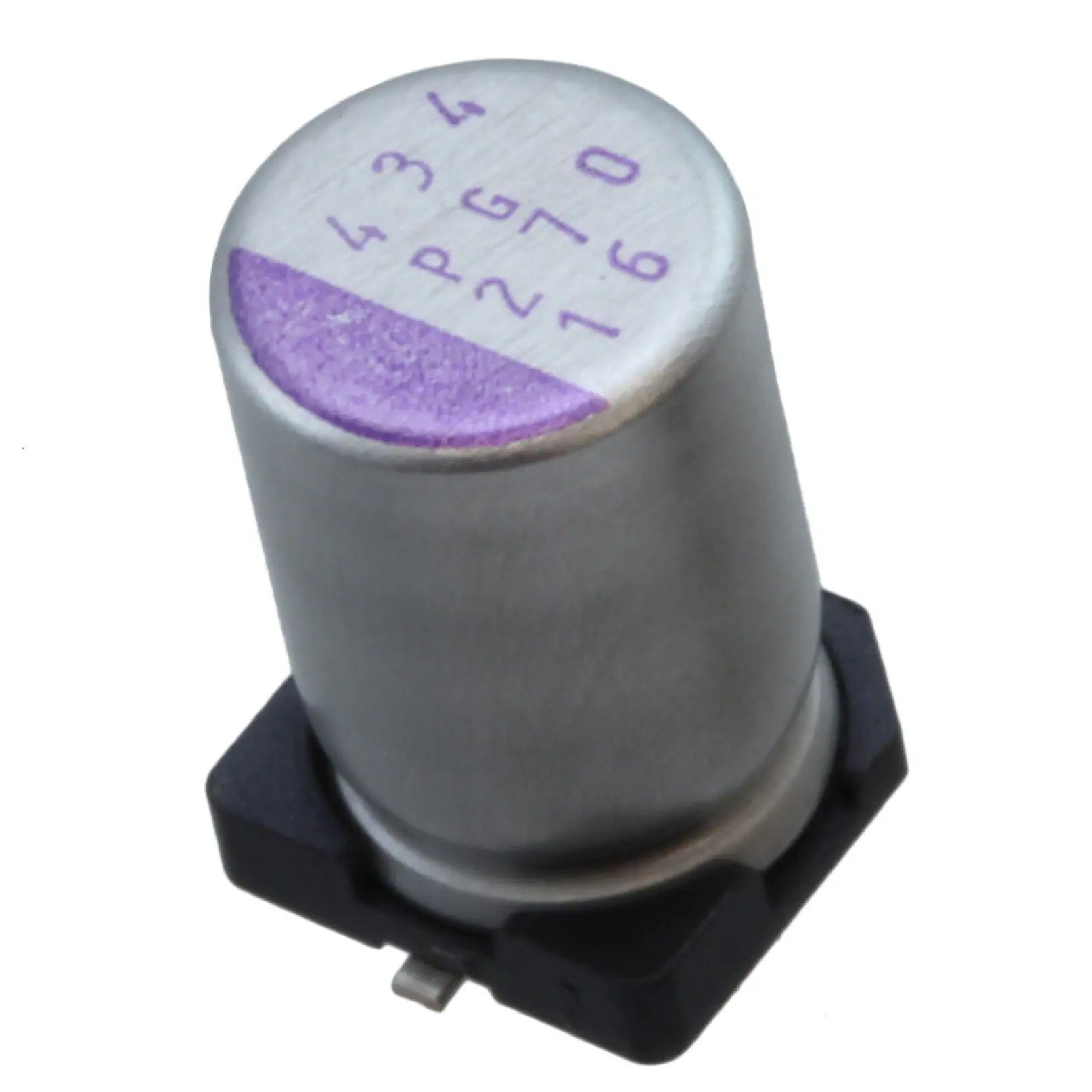

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPG
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 270 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 10mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 254 mA @ 120 Hz
Ripple Current @ High Frequency 5.08 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 16SVPG
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359539-16SVPG270MX
Ultra Librarian 3D Model Ultra Librarian 16SVPG270MX CAD Model

Description

The 1359539-16SVPG270MX is a polymer capacitor from Panasonic Electronic Components.

  • Manufacturer: Panasonic Electronic Components
  • Series: OS-CON™ SVPG
  • Application: General Purpose
  • Capacitance: 270 µF
  • Voltage - Rated: 16 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 10mOhm
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Operating Temperature: -55°C ~ 105°C
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.248" Dia (6.30mm)
  • Height - Seated (Max): 0.315" (8.00mm)
  • REACH SVHC Status: Unaffected
